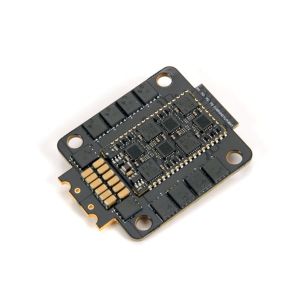

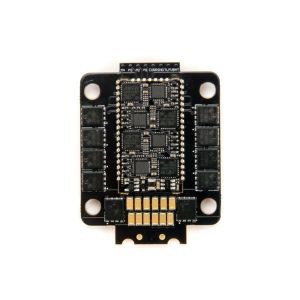

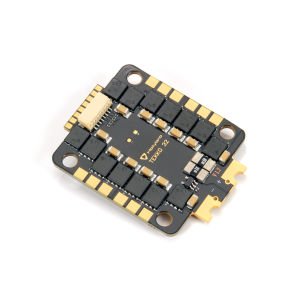

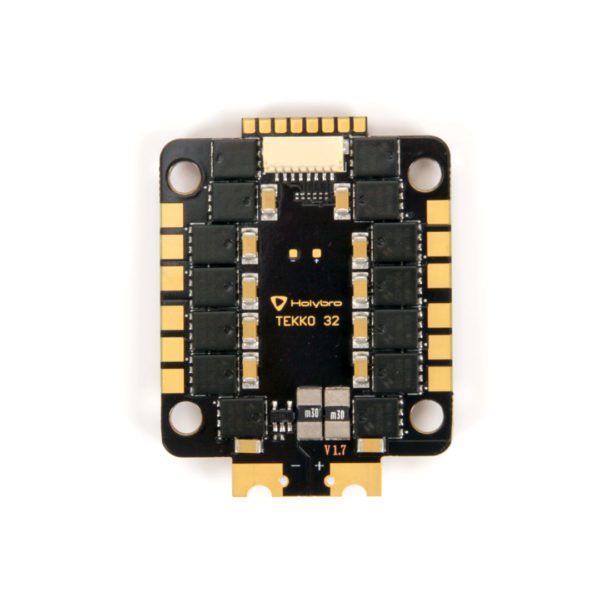

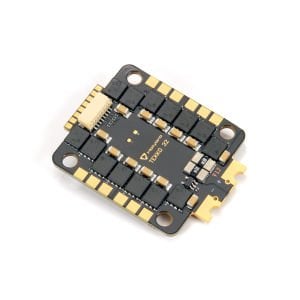

Tekko32 F4 4in1 50A ESC
4.830,00 TL + KDV
Stok Kodu
T99
Fiyat
4.830,00 TL + KDV
KDV Dahil Fiyat
5.796,00 TL
F4 MCU @150Mhz / PWM output up to 128K / 4~6S / BLHELI32
The all new Tekko32 is the first 4in1 ESC in market to adapt the fast F4 MCU @150Mhz, providing a smooth control operation and quick response.
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM output up to 126K (16K – 128k)
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Dimensions: 45x37x6mm / Weight: 13.8g
- Mounting holes: M4 30.5×30.5mm (M3 grommets included)
Specification:
Pin MAP:
Package includes:
Tekko32 F4 4in1 50A ESC *1
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Downloads:
