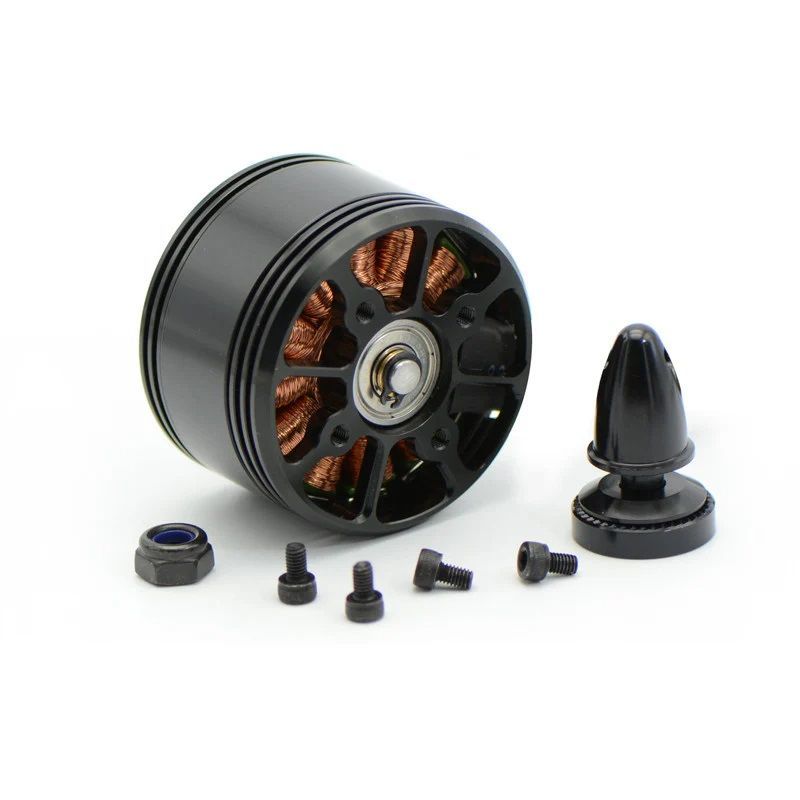

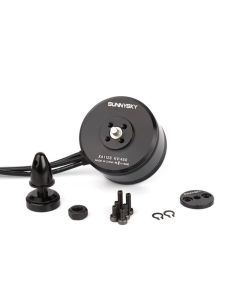

SunnySky XS High Power X4112S 450Kv Fırçasız Motor
3.200,00 TL + KDV
Stok Kodu
jetfire 888
Fiyat
3.200,00 TL + KDV
KDV Dahil Fiyat
3.840,00 TL
| No.of Stator Slots | 12 | Rotor Diameter | 47.5mm |
|---|---|---|---|
| No.of Rotor Poles | 14 | Shaft Diameter | 4mm |
| Motor Kv | 450 | Body Length (Without Shaft) | 35mm |
| No-load current | 0.7A/10V | Body Length | 33.5mm |
| Motor Resistance | 91mΩ | Max Lipo Cell | 6S |
| Max Continuous Current | 40A/30s | ESC | 40-60A |
| Max Continuous Power | 1000W | Recommended Prop(inch) | 14*4.7/15*5.5/16*6 |
| Weight | 188g | Weight for multirotors | ≤1700g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| 14*4.7 | 22.2 | 2 | 500 | 44.4 | 11.26126126 | 53℃ |
| 3.5 | 750 | 77.7 | 9.652509653 | |||
| 5.2 | 1000 | 115.44 | 8.662508663 | |||
| 7.3 | 1250 | 162.06 | 7.713192645 | |||
| 9.2 | 1500 | 204.24 | 7.344300823 | |||
| 11.8 | 1750 | 261.96 | 6.680409223 | |||
| 14.3 | 2000 | 317.46 | 6.3000063 | |||
| 17.8 | 2300 | 395.16 | 5.820427169 | |||
| 21.5 | 2600 | 477.3 | 5.447307773 | |||
| 23.2 | 2760 | 515.04 | 5.358807083 | |||
| 25 | 1.9 | 500 | 47.5 | 10.52631579 | 68℃ | |
| 3.2 | 750 | 80 | 9.375 | |||
| 4.7 | 1000 | 117.5 | 8.510638298 | |||
| 6.5 | 1250 | 162.5 | 7.692307692 | |||
| 8.5 | 1500 | 212.5 | 7.058823529 | |||
| 10.5 | 1750 | 262.5 | 6.666666667 | |||
| 12.9 | 2000 | 322.5 | 6.201550388 | |||
| 15.8 | 2300 | 395 | 5.82278481 | |||
| 19.1 | 2600 | 477.5 | 5.445026178 | |||
| 24.5 | 3000 | 612.5 | 4.897959184 | |||
| 27.9 | 3350 | 697.5 | 4.802867384 | |||
| 15*5.5 | 22.2 | 2 | 500 | 44.4 | 11.26126126 | 46℃ |
| 3.3 | 750 | 73.26 | 10.23751024 | |||
| 5.1 | 1000 | 113.22 | 8.832361774 | |||
| 6.9 | 1250 | 153.18 | 8.160334247 | |||
| 8.7 | 1500 | 193.14 | 7.766387077 | |||
| 11 | 1750 | 244.2 | 7.166257166 | |||
| 13.5 | 2000 | 299.7 | 6.673340007 | |||
| 16.6 | 2300 | 368.52 | 6.24118094 | |||
| 20.2 | 2650 | 448.44 | 5.909374721 | |||
| 25 | 1.7 | 500 | 42.5 | 11.76470588 | 63℃ | |
| 3 | 750 | 75 | 10 | |||
| 4.4 | 1000 | 110 | 9.090909091 | |||
| 6.1 | 1250 | 152.5 | 8.196721311 | |||
| 7.8 | 1500 | 195 | 7.692307692 | |||
| 9.7 | 1750 | 242.5 | 7.216494845 | |||
| 11.8 | 2000 | 295 | 6.779661017 | |||
| 14.5 | 2300 | 362.5 | 6.344827586 | |||
| 17.8 | 2600 | 445 | 5.842696629 | |||
| 21.9 | 3000 | 547.5 | 5.479452055 | |||
| 25.3 | 3290 | 632.5 | 5.201581028 | |||
| 16*6 | 22.2 | 2.1 | 500 | 46.62 | 10.72501073 | 71℃ |
| 3.5 | 750 | 77.7 | 9.652509653 | |||
| 5.1 | 1000 | 113.22 | 8.832361774 | |||
| 6.9 | 1250 | 153.18 | 8.160334247 | |||
| 9 | 1500 | 199.8 | 7.507507508 | |||
| 11 | 1750 | 244.2 | 7.166257166 | |||
| 13.2 | 2000 | 293.04 | 6.825006825 | |||
| 16.3 | 2300 | 361.86 | 6.356049301 | |||
| 19.6 | 2600 | 435.12 | 5.975363118 | |||
| 24.5 | 3000 | 543.9 | 5.515719801 | |||
| 28.6 | 3360 | 634.92 | 5.292005292 | |||
| 25 | 2 | 500 | 50 | 10 | 5 min 98℃ | |
| 3.3 | 750 | 82.5 | 9.090909091 | |||
| 4.7 | 1000 | 117.5 | 8.510638298 | |||
| 6.3 | 1250 | 157.5 | 7.936507937 | |||
| 8.1 | 1500 | 202.5 | 7.407407407 | |||
| 9.9 | 1750 | 247.5 | 7.070707071 | |||
| 12.1 | 2000 | 302.5 | 6.611570248 | |||
| 14.9 | 2300 | 372.5 | 6.174496644 | |||
| 17.8 | 2600 | 445 | 5.842696629 | |||
| 22 | 3000 | 550 | 5.454545455 | |||
| 28.2 | 3500 | 705 | 4.964539007 | |||
| 36.3 | 4100 | 907.5 | 4.517906336 |
