Sunnysky X4120 520kv Ve Flycolor 90a Esc Combo Set
| Stator Diameter | 41mm | Rotor Diameter | 49.7mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 49mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 6S |
| No.of Rotor Poles | 14 | ESC | 100-120A |
| Motor Kv | 550 | Recommended Prop(inch) | 6S(EOLO14*7/14*8/15*8) |
| No-load current | 1.9A/10V | ||
| Motor Resistance | 18.5mΩ | ||
| Max Continuous Current | 100A/30s | ||
| Max Continuous Power | 2500W | ||
| Weight |
293g |
||
|
|
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | RPM | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|---|
| EOLO 14*7 | 22.51 | 2.20 | 432 | 49.61 | 8.71 | 3248 | 120℃ 4min25s |
| 22.49 | 4.21 | 776 | 94.7 | 8.19 | 3906 | ||
| 22.47 | 5.84 | 1010 | 131.2 | 7.69 | 4560 | ||
| 22.43 | 7.86 | 1260 | 176.32 | 7.14 | 5040 | ||
| 22.35 | 10.06 | 1514 | 224.77 | 6.73 | 5537 | ||
| 22.31 | 11.95 | 1728 | 266.69 | 6.48 | 5955 | ||
| 22.24 | 15.18 | 2073 | 337.53 | 6.14 | 6313 | ||
| 22.18 | 17.13 | 2261 | 379.89 | 5.95 | 6758 | ||
| 22.16 | 19.27 | 2455 | 427.08 | 5.74 | 7050 | ||
| 22.09 | 22.87 | 2742 | 505.1 | 5.42 | 7411 | ||
| 22.02 | 26.05 | 3023 | 573.64 | 5.27 | 7640 | ||
| 21.86 | 33.07 | 3498 | 722.82 | 4.83 | 8260 | ||
| 21.69 | 41.19 | 4041 | 893.32 | 4.52 | 8748 | ||
| 21.19 | 66.31 | 5277 | 1405.08 | 3.75 | 9780 | ||
| 24.89 | 2.18 | 485 | 54.26 | 8.93 | 3196 | ||
| 24.89 | 3.58 | 732 | 89.18 | 8.21 | 3904 | ||
| 24.82 | 5.04 | 978 | 125.04 | 7.82 | 4437 | ||
| 24.79 | 7.14 | 1256 | 176.97 | 7.09 | 4968 | ||
| 24.75 | 8.94 | 1484 | 221.36 | 6.7 | 5500 | ||
| 24.71 | 11.18 | 1769 | 276.23 | 6.4 | 6000 | ||
| 24.65 | 13.67 | 2055 | 336.99 | 6.09 | 6320 | ||
| 24.6 | 15.36 | 2250 | 377.78 | 5.95 | 6770 | ||
| 24.55 | 18.35 | 2555 | 450.49 | 5.67 | 7080 | ||
| 24.49 | 20.52 | 2781 | 502.63 | 5.53 | 7323 | ||
| 24.45 | 23.01 | 2993 | 562.64 | 5.31 | 7500 | ||
| 24.31 | 29.29 | 3526 | 712.03 | 4.95 | 8200 | ||
| 24.17 | 35.94 | 4030 | 868.54 | 4.64 | 8700 | ||
| 23.83 | 51.16 | 4983 | 1219.16 | 4.08 | 9663 | ||
| 23.21 | 81.14 | 6511 | 1883.3 | 3.45 | 10890 | ||
| EOLO 14*8 | 22.28 | 2.52 | 499 | 56.07 | 8.9 | 2772 | 119℃ 2min25s |
| 22.23 | 4.24 | 745 | 94.23 | 7.9 | 3724 | ||
| 22.22 | 6.02 | 998 | 133.65 | 7.46 | 4262 | ||
| 22.13 | 8.34 | 1281 | 184.65 | 6.93 | 4867 | ||
| 22.08 | 10.68 | 1532 | 235.81 | 6.49 | 5299 | ||
| 22.01 | 12.58 | 1739 | 276.79 | 6.28 | 5619 | ||
| 21.97 | 15.12 | 1997 | 332.18 | 6.01 | 6000 | ||
| 21.93 | 18.69 | 2314 | 409.87 | 5.64 | 6301 | ||
| 21.85 | 22.37 | 2626 | 488.67 | 5.37 | 6832 | ||
| 21.82 | 24.21 | 2760 | 528.24 | 5.22 | 7081 | ||
| 21.73 | 27.19 | 2979 | 590.77 | 5.04 | 7302 | ||
| 21.59 | 33.73 | 3435 | 728.16 | 4.71 | 7751 | ||
| 21.41 | 42.47 | 3976 | 909.23 | 4.37 | 8275 | ||
| 20.69 | 73.95 | 5509 | 1530.06 | 3.6 | 9611 | ||
| 24.87 | 2.34 | 482 | 58.27 | 8.27 | 3157 | ||
| 24.86 | 3.91 | 761 | 97.3 | 7.81 | 3778 | ||
| 24.8 | 5.53 | 1020 | 137.24 | 7.42 | 4311 | ||
| 24.77 | 7.51 | 1282 | 186.04 | 6.88 | 4895 | ||
| 24.71 | 10.05 | 1582 | 248.31 | 6.37 | 5386 | ||
| 24.65 | 11.72 | 1785 | 288.82 | 6.17 | 5703 | ||
| 24.62 | 13.84 | 2102 | 340.64 | 6.16 | 6044 | ||
| 24.57 | 16.56 | 2299 | 406.75 | 5.65 | 6423 | ||
| 24.52 | 18.29 | 2451 | 448.39 | 5.46 | 6629 | ||
| 24.44 | 21.69 | 2790 | 530.17 | 5.26 | 6960 | ||
| 24.4 | 24.44 | 3027 | 596.36 | 5.07 | 7223 | ||
| 24.27 | 30.50 | 3467 | 740.11 | 4.68 | 7729 | ||
| 24.1 | 38.14 | 4022 | 919.07 | 4.37 | 8269 | ||
| 23.77 | 54.50 | 4965 | 1295.39 | 3.83 | 9124 | ||
| 23.01 | 91.35 | 6514 | 2101.91 | 3.09 | 10262 | ||
| EOLO 15*8 | 22.6 | 2.51 | 509 | 56.72 | 8.96 | 2739 | 120℃ 1min |
| 22.58 | 3.39 | 744 | 76.45 | 9.72 | 3114 | ||
| 22.56 | 5.49 | 999 | 123.76 | 8.07 | 3756 | ||
| 22.51 | 7.33 | 1266 | 164.97 | 7.67 | 4321 | ||
| 22.47 | 8.99 | 1481 | 201.98 | 7.33 | 4558 | ||
| 22.43 | 11.12 | 1737 | 249.46 | 6.96 | 4902 | ||
| 22.38 | 13.84 | 2014 | 309.62 | 6.5 | 5118 | ||
| 22.33 | 15.93 | 2230 | 355.64 | 6.26 | 5621 | ||
| 22.27 | 18.68 | 2454 | 416.07 | 5.89 | 5949 | ||
| 22.21 | 21.33 | 2781 | 473.65 | 5.87 | 6180 | ||
| 22.19 | 24.10 | 2947 | 534.77 | 5.51 | 6399 | ||
| 22.04 | 30.69 | 3473 | 676.36 | 5.13 | 6901 | ||
| 21.85 | 39.07 | 4035 | 853.63 | 4.72 | 7384 | ||
| 21.49 | 55.50 | 5013 | 1192.71 | 4.2 | 8181 | ||
| 20.81 | 89.35 | 6507 | 1859.29 | 3.49 | 9032 | ||
| 21.96 | 95.84 | 6919 | 2104.62 | 3.28 | 9393 | ||
| 25.04 | 2.08 | 481 | 51.95 | 9.26 | 3687 | ||
| 25 | 3.24 | 740 | 80.92 | 9.14 | 3412 | ||
| 24.98 | 4.91 | 1020 | 122.65 | 8.31 | 3678 | ||
| 24.93 | 6.25 | 1236 | 155.91 | 7.92 | 4329 | ||
| 24.9 | 7.95 | 1480 | 197.85 | 7.48 | 4590 | ||
| 24.86 | 10.21 | 1739 | 253.84 | 6.84 | 4929 | ||
| 24.82 | 12.52 | 2024 | 310.84 | 6.51 | 5280 | ||
| 24.76 | 14.89 | 2292 | 368.67 | 6.21 | 5683 | ||
| 24.68 | 18.14 | 2586 | 447.69 | 5.77 | 6049 | ||
| 24.64 | 19.63 | 2731 | 483.75 | 5.64 | 6200 | ||
| 24.56 | 22.23 | 2880 | 545.94 | 5.27 | 6426 | ||
| 24.44 | 28.30 | 3545 | 691.6 | 5.12 | 6842 | ||
| 24.3 | 35.36 | 4076 | 859.32 | 4.74 | 7349 | ||
| 24 | 50.97 | 5057 | 1223.3 | 4.13 | 8101 | ||
| 23.69 | 68.01 | 5857 | 1611.15 | 3.63 | 8731 | ||
| 22.94 | 102.68 | 7231 | 2355.43 | 3.06 | 9405 |

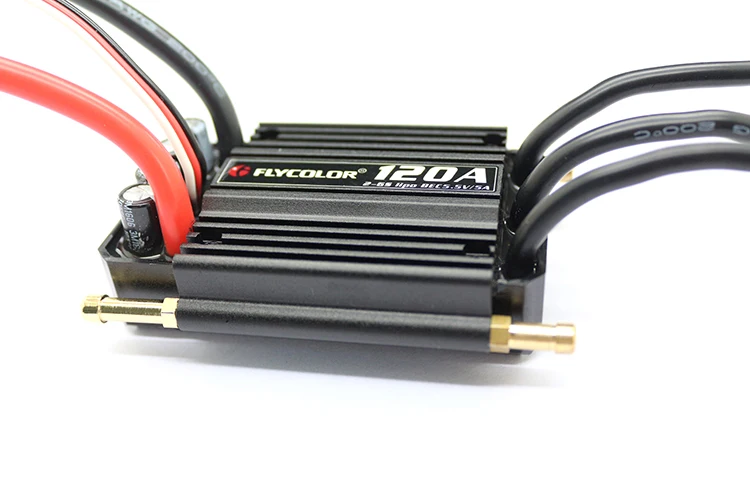

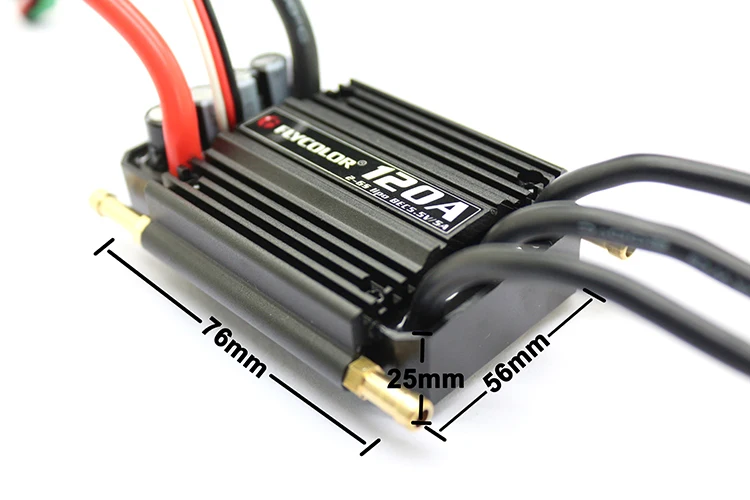

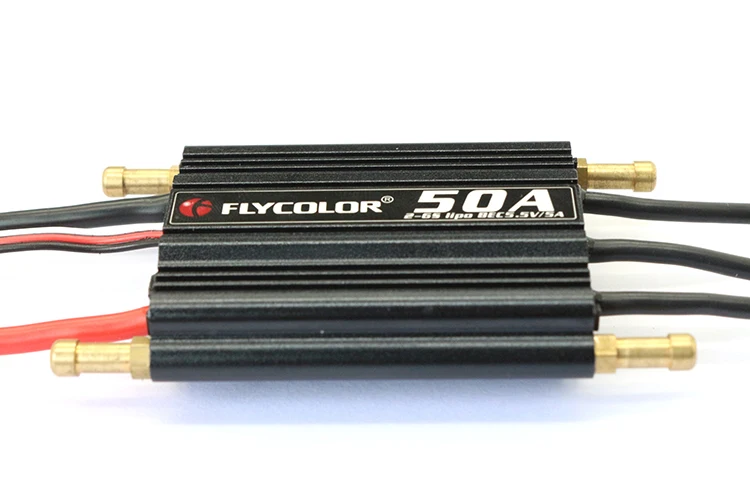

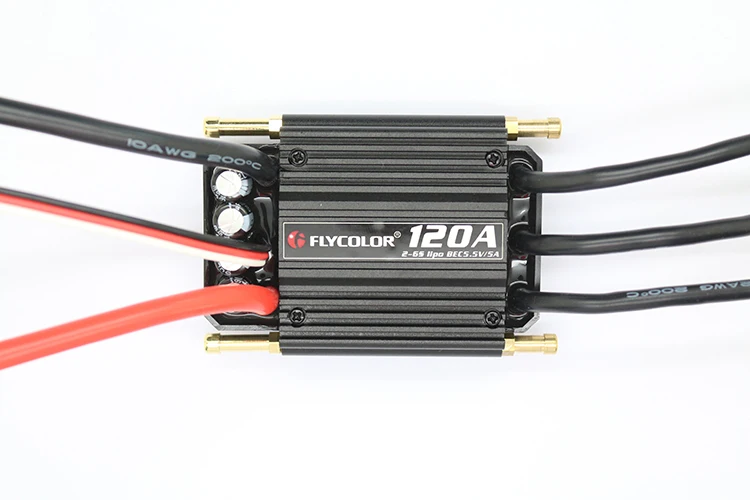

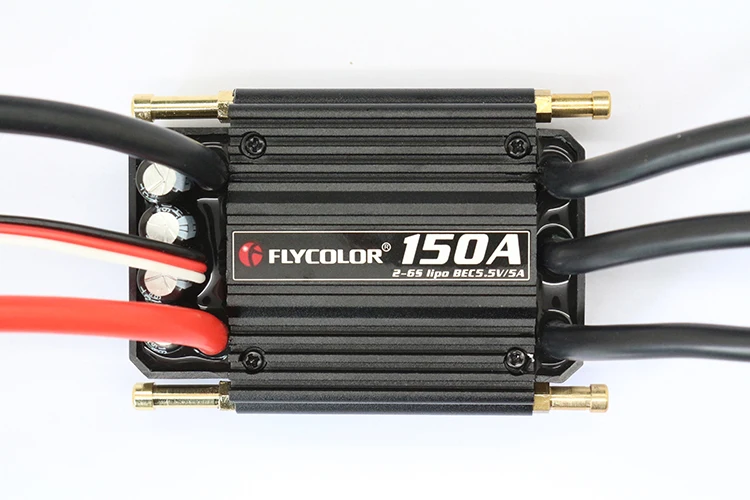

Flycolor 50A 70A 90A 120A 150A Brushless ESC Speed Control Stand 2-6S Lipo BEC 5.5V/5A for RC Boat F21267/71

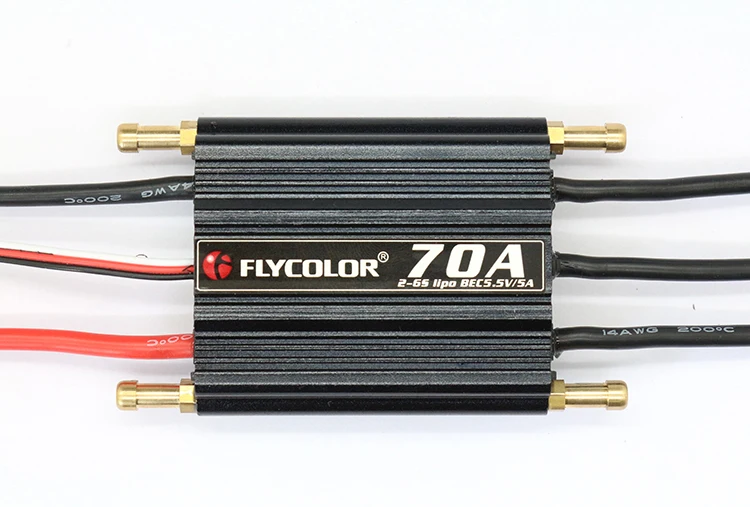

There are five ESC Models: A-SW050006 (50A), A-SW070006 (70A), A-SW090006 (90A), A-SW120006 (120A), A-SW150006 (150A). Please, choose the one you want.
only ESC, no other item included.

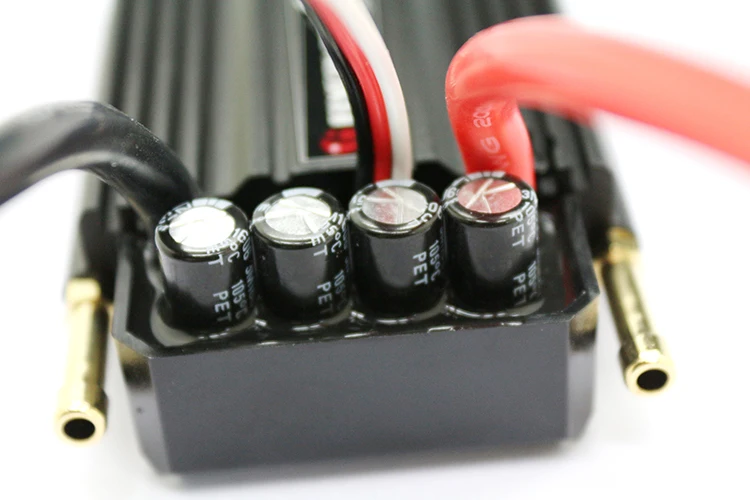

great application for the RC boat, design of the special structure with a condenser function to prevent damage components and protection against corrosion.
Professional waterproof technology, excellent performance after a long time in the water.
Driving Efficiency Optimization technology with BEC built in 5A through 8A, better performance, then BEC Asynchronous rectifier.
Powerful powerful, 5 main functional options for selection, meeting level difference requirement.
Easy to operate, same throttle adjustment method for both one-way and bidirectional.
01. main features
Use powerful and high performance MCU. Users can configure the functions as their demand, fully embody Intelligent features. Unique circuit design, strong anti-interference.
water resistant design (Note: if there is water at CES, please dry the water in the connectors).
Start mode can be configured. the quick accelerator response, and has very good linear speed control. Compatible with boat scale and racing boat.
Low voltage protection threshold value can be adjusted.
Built-in BEC switch, large power load with servo, low power dissipation.
multiple protection functions: abnormal voltage protection / low voltage cutout protection, excess thermal protection and protection against accelerator signal loss, making the CES more reliable.
High-performance safety performance: As long as the throttle lever is, the engine does not start immediately.
on thermal protection: when ESC temperature is above 100 degrees Fahrenheit, output power is automatically reduced. When it is less than 80 degrees Fahrenheit output power will return to normal.menu adjustment cycle, simple operation. support adjustment with program box and transmitter.

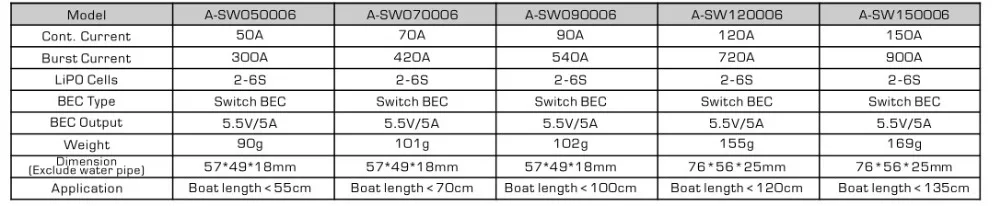

2. Specification

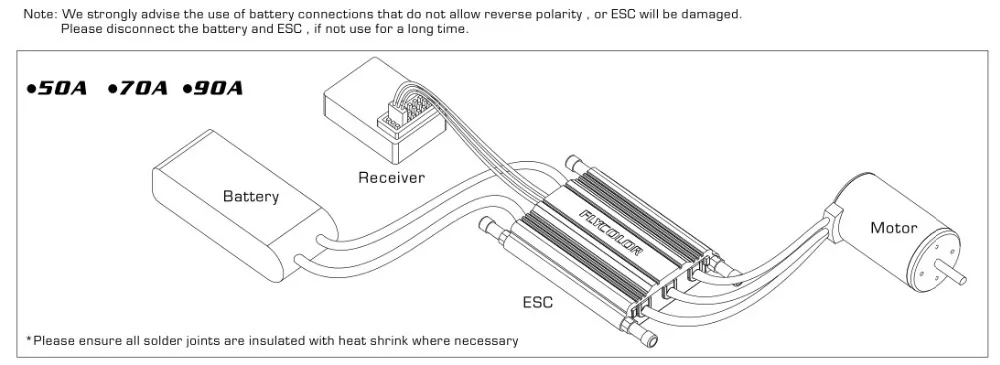

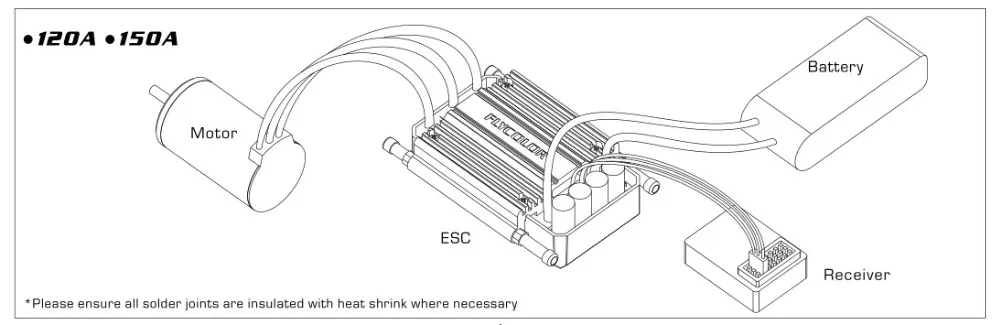

3. Wiring Diagrams
Note: We strongly advise the use of battery connections that do not allow reverse polarity, or ESC
will be damaged. Pls disconnect the battery and ESC, if not use for a long time

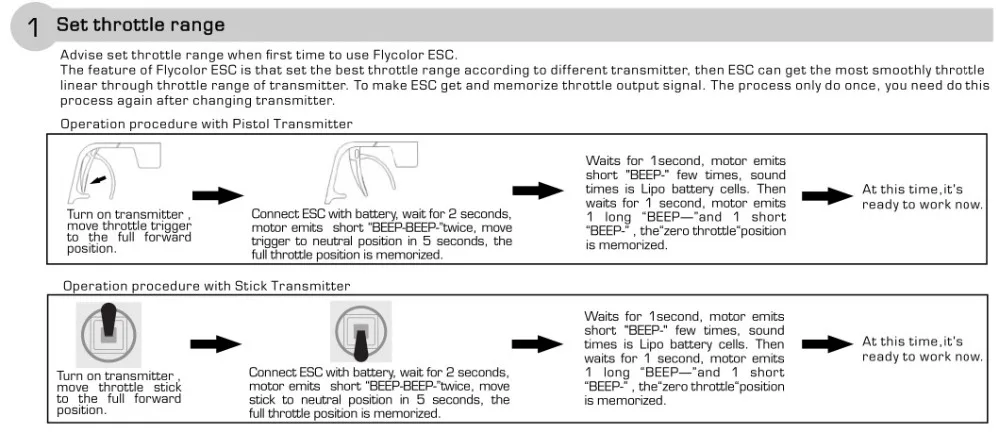

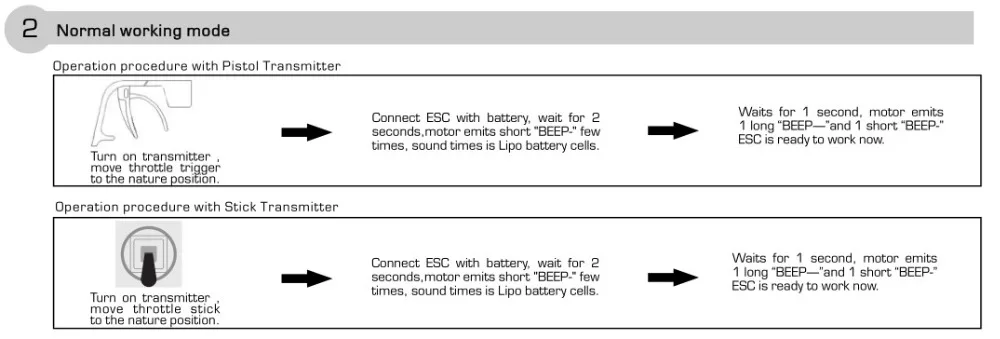

4. Operation instruction
PAKET İÇERİK

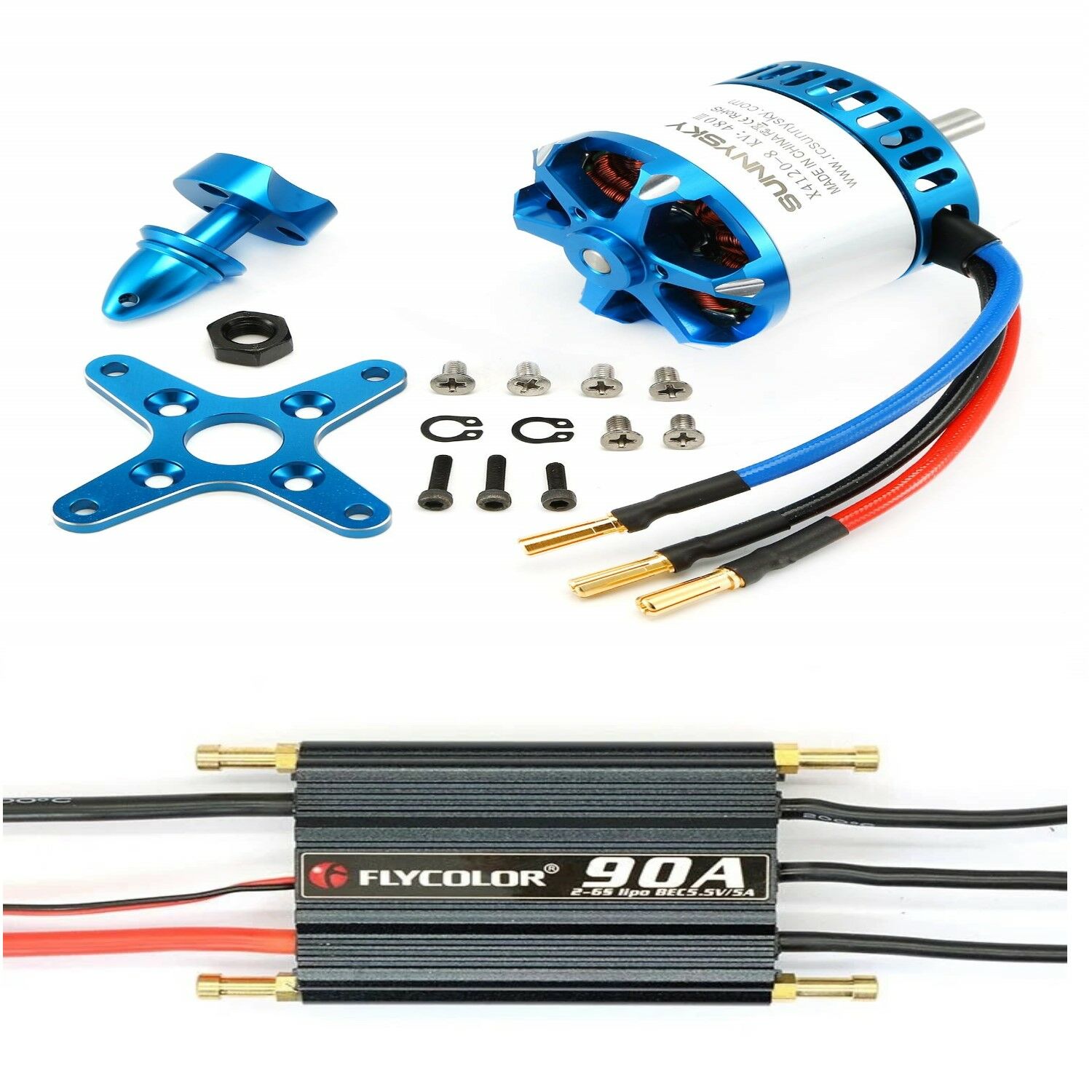

1X SUNNYSKY X4120 550KV MOTOR

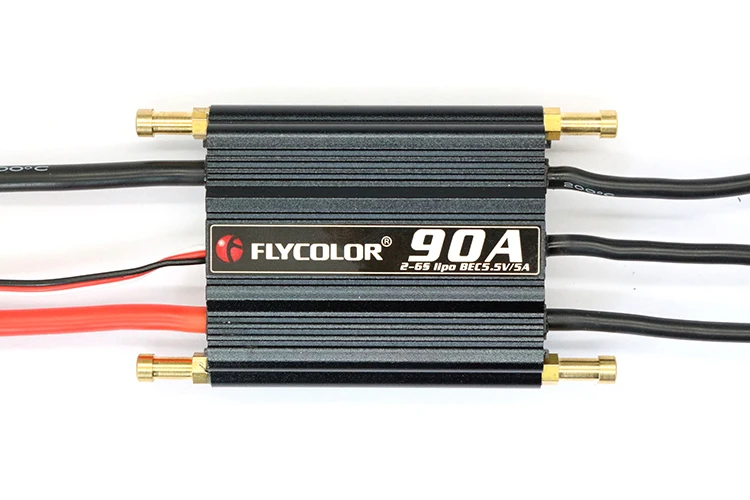

1X FLYCOLOR 90A MOTOR SÜRÜCÜ
