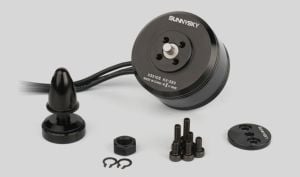

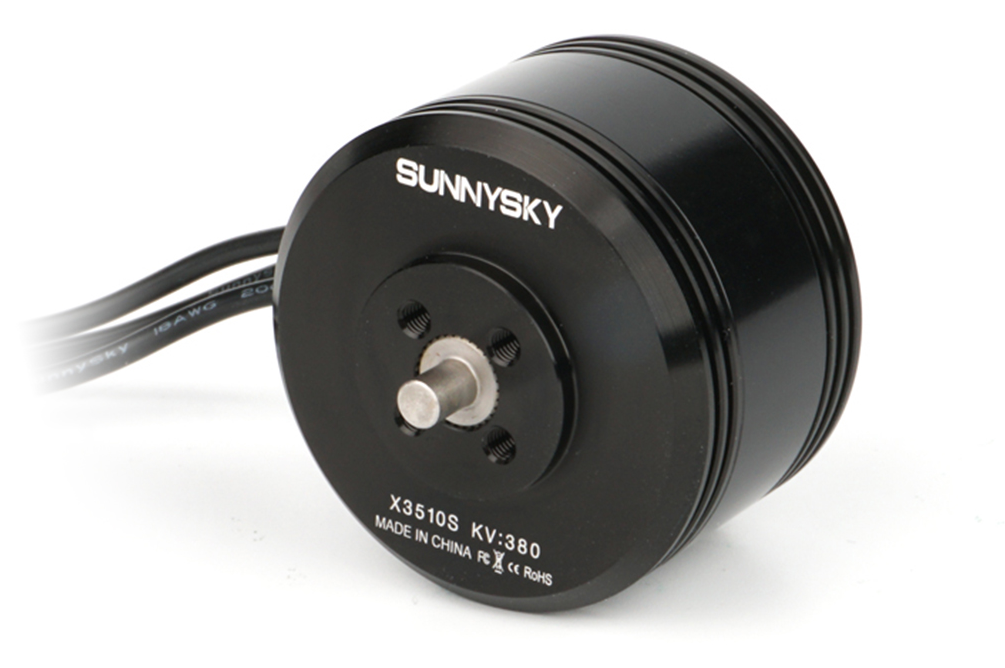

Sunnysky X3510S 380KV Fırçasız Motor
X3510S
|
Specifications |
X3510S |
Max Continuous Current |
25A/30s |
|
Stator Diameter |
35.1mm |
Max Continuous Power |
625W |
|
Stator Thickness |
10mm |
Weight |
131g |
|
No.of Stator Slots |
12 |
Rotor Diameter |
41.9mm |
|
No.of Rotor Poles |
14 |
Body Length |
30mm |
|
Motor Kv |
380 |
Max Lipo Cell |
6S |
|
NO-Load Current(A/10V) |
0.49A |
ESC |
40A |
|
Motor Resistance |
185mΩ |
Recommend Prop(inch) |
EOLO CN12*5 C13*5 C15*5.5 CN16*6 |
|
Propeller (inch) |
Voltage (V) |
Current (A) |
Thrust (g) |
Watts (W) |
Efficiency (g/W) |
RPM |
Load temperature in 100% throttle |
|
EOLO12*5 |
22.2 |
0.8 |
200 |
17.76 |
11.26 |
2931 |
|
|
1.3 |
300 |
28.86 |
10.40 |
3519 |
|||
|
1.8 |
400 |
39.96 |
10.01 |
4053 |
|||
|
2.4 |
500 |
53.28 |
9.38 |
4464 |
|||
|
3.1 |
600 |
68.82 |
8.72 |
4864 |
|||
|
3.8 |
700 |
84.36 |
8.30 |
5190 |
|||
|
4.5 |
800 |
99.9 |
8.01 |
5546 |
|||
|
6.2 |
1000 |
137.64 |
7.27 |
6245 |
|||
|
8.4 |
1240 |
186.48 |
6.65 |
6860 |
|||
|
25 |
0.7 |
200 |
17.50 |
11.43 |
2956 |
||
|
1.2 |
300 |
30.00 |
10.00 |
3539 |
|||
|
1.7 |
400 |
42.50 |
9.41 |
4035 |
|||
|
2.2 |
500 |
55.00 |
9.09 |
4480 |
|||
|
2.8 |
600 |
70.00 |
8.57 |
4824 |
|||
|
3.4 |
700 |
85.00 |
8.24 |
5221 |
|||
|
4 |
800 |
100.00 |
8.00 |
5562 |
|||
|
5.5 |
1000 |
137.50 |
7.27 |
6250 |
|||
|
7.1 |
1200 |
177.50 |
6.76 |
6739 |
|||
|
10.3 |
1540 |
257.50 |
5.98 |
7566 |
1min30s 80℃ |
||
|
EOLO13*5 |
22.2 |
0.7 |
200 |
15.54 |
12.87 |
2455 |
|
|
1.2 |
300 |
26.64 |
11.26 |
3011 |
|||
|
1.7 |
400 |
37.74 |
10.60 |
3445 |
|||
|
2.2 |
500 |
48.84 |
10.24 |
3841 |
|||
|
2.8 |
600 |
62.16 |
9.65 |
4226 |
|||
|
3.5 |
700 |
77.70 |
9.01 |
4491 |
|||
|
4.2 |
800 |
93.24 |
8.58 |
4736 |
|||
|
5.8 |
1000 |
128.76 |
7.77 |
5289 |
|||
|
7.5 |
1200 |
166.50 |
7.21 |
5812 |
|||
|
10.4 |
1500 |
230.88 |
6.50 |
6558 |
|||
|
25 |
0.7 |
200 |
17.50 |
11.43 |
2456 |
||
|
1.1 |
300 |
27.50 |
10.91 |
3010 |
|||
|
1.5 |
400 |
37.50 |
10.67 |
3484 |
|||
|
2 |
500 |
50.00 |
10.00 |
3826 |
|||
|
2.5 |
600 |
62.50 |
9.60 |
4215 |
|||
|
3.1 |
700 |
77.50 |
9.03 |
4487 |
|||
|
3.8 |
800 |
95.00 |
8.42 |
4721 |
|||
|
5.1 |
1000 |
127.50 |
7.84 |
5262 |
|||
|
6.7 |
1200 |
167.50 |
7.16 |
5785 |
|||
|
8.3 |
1400 |
207.50 |
6.75 |
6195 |
|||
|
10.2 |
1600 |
255.00 |
6.27 |
6662 |
|||
|
13.1 |
1910 |
327.50 |
5.83 |
7197 |
50s 80℃ |
||
|
EOLO15*5.5 |
22.2 |
0.6 |
200 |
13.32 |
15.02 |
1961 |
|
|
1 |
300 |
22.20 |
13.51 |
2393 |
|||
|
1.5 |
400 |
33.30 |
12.01 |
2739 |
|||
|
2 |
500 |
44.40 |
11.26 |
3074 |
|||
|
2.6 |
600 |
57.72 |
10.40 |
3373 |
|||
|
3.2 |
700 |
71.04 |
9.85 |
3630 |
|||
|
3.8 |
800 |
84.36 |
9.48 |
3865 |
|||
|
5.3 |
1000 |
117.66 |
8.50 |
4281 |
|||
|
7 |
1200 |
155.40 |
7.72 |
4709 |
|||
|
8.8 |
1400 |
195.36 |
7.17 |
5047 |
|||
|
10.8 |
1600 |
239.76 |
6.67 |
5421 |
|||
|
13 |
1800 |
288.60 |
6.24 |
5676 |
|||
|
15.1 |
2020 |
335.22 |
6.03 |
5990 |
|||
|
25 |
0.6 |
200 |
15.00 |
13.33 |
1980 |
||
|
0.9 |
300 |
22.50 |
13.33 |
2398 |
|||
|
1.4 |
400 |
35.00 |
11.43 |
2781 |
|||
|
1.8 |
500 |
45.00 |
11.11 |
3105 |
|||
|
2.3 |
600 |
57.50 |
10.43 |
3397 |
|||
|
2.8 |
700 |
70.00 |
10.00 |
3653 |
|||
|
3.5 |
800 |
87.50 |
9.14 |
3828 |
|||
|
4.7 |
1000 |
117.50 |
8.51 |
4287 |
|||
|
6.2 |
1200 |
155.00 |
7.74 |
4701 |
|||
|
7.8 |
1400 |
195.00 |
7.18 |
5058 |
|||
|
9.7 |
1600 |
242.50 |
6.60 |
5411 |
|||
|
11.8 |
1800 |
295.00 |
6.10 |
5742 |
|||
|
13.9 |
2000 |
347.50 |
5.76 |
6026 |
|||
|
18.2 |
2390 |
455.00 |
5.25 |
6545 |
35s 82℃ |
||
|
EOLO16*6 |
22.2 |
0.7 |
200 |
15.54 |
12.87 |
1646 |
|
|
1.1 |
300 |
24.42 |
12.29 |
1980 |
|||
|
1.5 |
400 |
33.30 |
12.01 |
2253 |
|||
|
2 |
500 |
44.40 |
11.26 |
2520 |
|||
|
2.6 |
600 |
57.72 |
10.40 |
2714 |
|||
|
3.2 |
700 |
71.04 |
9.85 |
2916 |
|||
|
3.9 |
800 |
86.58 |
9.24 |
3074 |
|||
|
5.3 |
1000 |
117.66 |
8.50 |
3412 |
|||
|
7.1 |
1200 |
157.62 |
7.61 |
3708 |
|||
|
8.9 |
1400 |
197.58 |
7.09 |
3998 |
|||
|
11.1 |
1600 |
246.42 |
6.49 |
4301 |
|||
|
13.5 |
1800 |
299.70 |
6.01 |
4536 |
|||
|
16.2 |
2000 |
359.64 |
5.56 |
4745 |
|||
|
19.5 |
2200 |
432.90 |
5.08 |
4953 |
|||
|
21.5 |
2430 |
477.30 |
5.09 |
5156 |
|||
|
25 |
0.6 |
200 |
15.00 |
13.33 |
1678 |
||
|
1 |
300 |
25.00 |
12.00 |
2005 |
|||
|
1.4 |
400 |
35.00 |
11.43 |
2253 |
|||
|
1.8 |
500 |
45.00 |
11.11 |
2500 |
|||
|
2.3 |
600 |
57.50 |
10.43 |
2697 |
|||
|
2.9 |
700 |
72.50 |
9.66 |
2894 |
|||
|
3.4 |
800 |
85.00 |
9.41 |
3096 |
|||
|
4.8 |
1000 |
120.00 |
8.33 |
3388 |
|||
|
6.3 |
1200 |
157.50 |
7.62 |
3726 |
|||
|
8 |
1400 |
200.00 |
7.00 |
3990 |
|||
|
10.1 |
1600 |
252.50 |
6.34 |
4296 |
|||
|
12.3 |
1800 |
307.50 |
5.85 |
4527 |
|||
|
15 |
2000 |
375.00 |
5.33 |
4792 |
|||
|
18.1 |
2200 |
452.50 |
4.86 |
4975 |
|||
|
20 |
2400 |
500.00 |
4.80 |
5213 |
|||
|
24.8 |
2700 |
620.00 |
4.35 |
5545 |
20s 85℃ |
