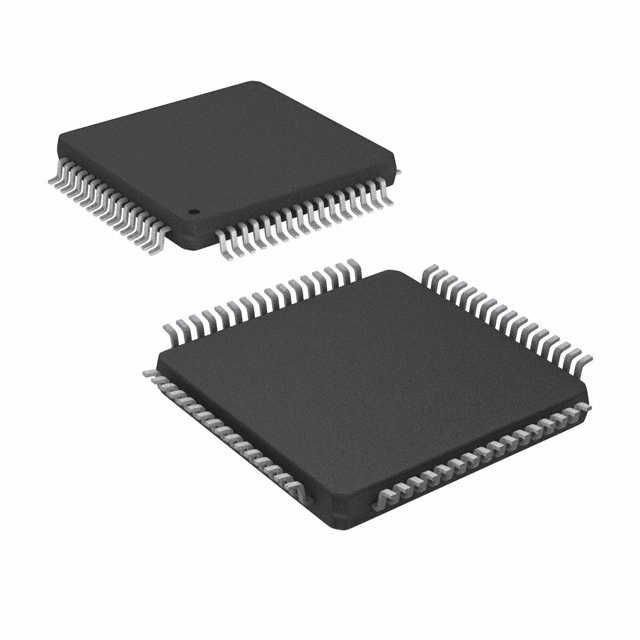

STM32F373R8T6 32BIT 64KB FLASH 64LQFP Mikrodenetleyici
483,00 TL + KDV
Kategori
Stok Kodu
P153
Fiyat
483,00 TL + KDV
KDV Dahil Fiyat
579,60 TL
Mfr Package Description 10 X 10 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-64
RoHS Yes
Status Active
Microprocessor/Microcontroller/Peripheral IC Type MICROCONTROLLER, RISC
ADC Channels YES
Address Bus Width 0.0
Bit Size 32
Clock Frequency-Max 32.0 MHz
CPU Family CORTEX-M4F
DAC Channels YES
DMA Channels YES
External Data Bus Width 0.0
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Moisture Sensitivity Level 3
Number of I/O Lines 52.0
Number of Terminals 64
On Chip Program ROM Width 8.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 2.5/3.3
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 16384.0
ROM Programmability FLASH
ROM (words) 65536
Seated Height-Max 1.6 mm
Speed 72.0 MHz
Sub Category Microcontrollers
Supply Current-Max 75.7 mA
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 2.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 10.0 mm
Width 10.0 mm
RoHS Yes
Status Active
Microprocessor/Microcontroller/Peripheral IC Type MICROCONTROLLER, RISC
ADC Channels YES
Address Bus Width 0.0
Bit Size 32
Clock Frequency-Max 32.0 MHz
CPU Family CORTEX-M4F
DAC Channels YES
DMA Channels YES
External Data Bus Width 0.0
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Moisture Sensitivity Level 3
Number of I/O Lines 52.0
Number of Terminals 64
On Chip Program ROM Width 8.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 2.5/3.3
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 16384.0
ROM Programmability FLASH
ROM (words) 65536
Seated Height-Max 1.6 mm
Speed 72.0 MHz
Sub Category Microcontrollers
Supply Current-Max 75.7 mA
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 2.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 10.0 mm
Width 10.0 mm
Bu ürüne ilk yorumu siz yapın!
