Rj45 Ethernet to Rs232 Ttl Dönüştürücü Ip Modül Usr-Tcp232-T2
596,70 TL + KDV
Kategori
Stok Kodu
T199
Fiyat
596,70 TL + KDV
KDV Dahil Fiyat
716,04 TL

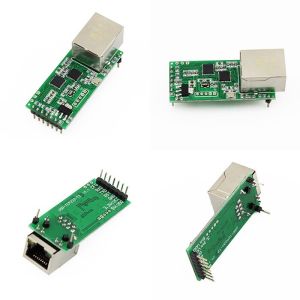

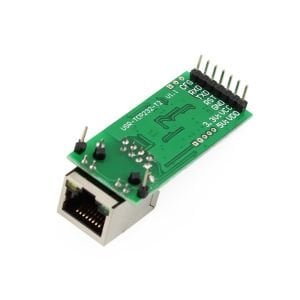

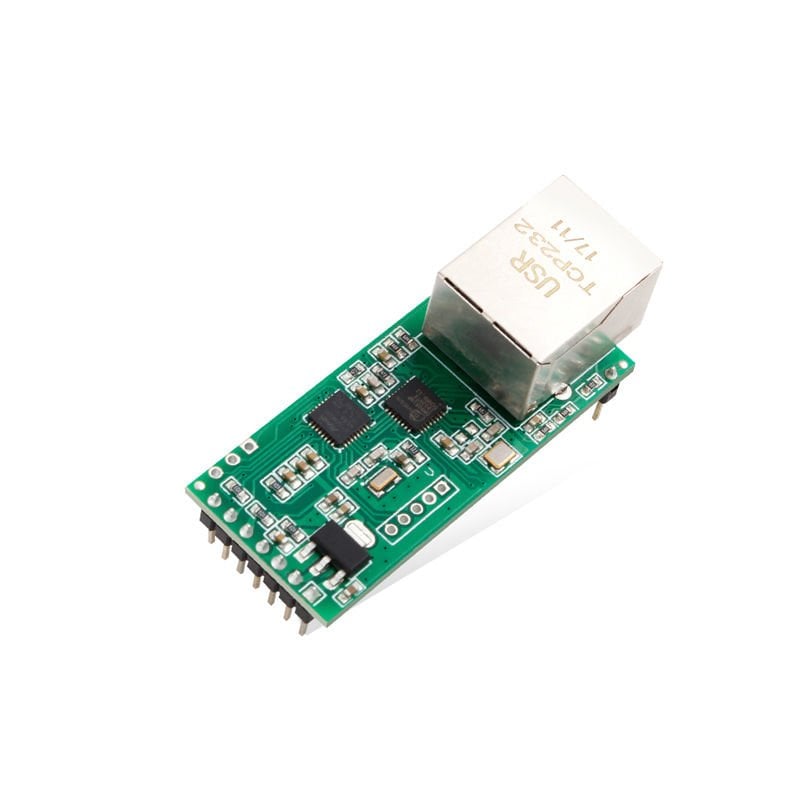

RJ45 Ethernet - RS232 TTL Dönüştürücü IP Modül USR-TCP232-T2
RS232 ile haberleşen cihazlarınızı internet üzerinden, mesafeye bağlı olmadan birbirine bağlayabilirsiniz.
Özellikleri:
Otomatik data hızı tespiti 10/100M
AUTO MDI/MDIX, Cross yada düz kablo bağlantısına uygun.
Bilgi aktarım hızı - Baud rate 600 ~ 460800 bps.
TCP Server, TCP Client, UDP client , UDP server.
Virtual COM olarak çalışabilirsiniz
TCP bağlantı kesildiğinde otomatik bağlanma
3.3V ve 5V iki ayrı besleme imkanı
USR-TCP232-T2 is a tiny size serial Ethernet module whichcan realize data bidirectional transparent transmission between TTL and RJ45Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fastspeed and high efficiency.
Features :
Support DHCP, automatically obtain an IP address and queryIP address through serial setting protocol
Support DNS function
Set parameters through webpage and serial AT command
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 460.8 Kbps, Check bitof None,Odd,Even,Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server,HTTPD Client
Support virtual serial port and provide correspondingsoftware USR-VCOM
Heartbeat package mechanism to ensure connection isreliable, put an end to dead link
User-defined registration package mechanism, checkconnection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16;default number is 4
The global unique MAC address bought from IEEE, user candefine MAC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such asVB,C++,Delphi,Android and IOS Support customization
Parameter :
Input Voltage: DC 3.3V/5V
Current: 150mA
Size: 55 x 22.6 x 23.1 mm
Operating Temp: -25 ~75°C
Storage Temp: -40 ~ 105°C, 5 ~ 95% RH
Interface: TTL UART
