Radiolink R12F 12 Kanal Uzaktan Kumanda Alıcısı

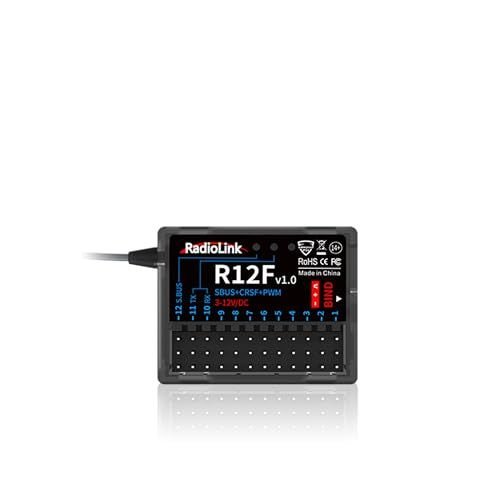

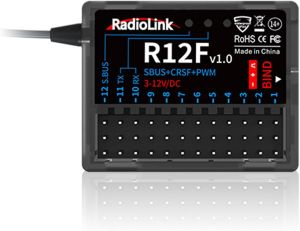

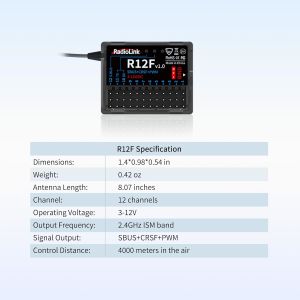

R12F 12 Channels Receiver
Supports PWM&SBUS&CRSF Signal
Supports Upgrade Online
4000 Meters Control Distance
Anti-polarity Connect Protection
Subsidiary ID

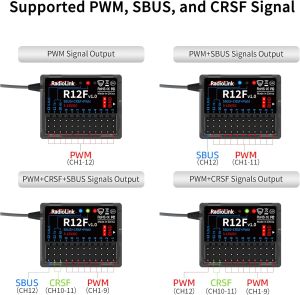

PWM working mode: Red LED always on indicates PWM signal output, 12 channels total.
PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output. CH1 to CH11 is with PWM signal output while CH12 is with SBUS signal output.
PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output. CH1 to CH9 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol, and CH12 outputs the SBUS signal.
CRSF+PWM working mode: Green and red LED always on indicates PWM+CRSF signals output. CH1 to CH9, and CH12 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol.
Compatible Radiolink Transmitters
T series aircraft transmitters: 16 fully-proportional channels transmitter T16D, 12 fully-proportional channels transmitter T12D, 8 channels transmitter T8FB(BT), T8S(BT), T8FB(OTG), and T8S(OTG).
Surface transmitters: 8 channels transmitter RC8X, 7 channels transmitter RC6GS V3, 5 channels transmitter RC4GS V3, 6 channels transmitter RC6GS V2, RC6GS, and 4 channels transmitter RC4GS V2, RC4GS.
Subsidiary ID
Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.
Example 1: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage. At this time, ship No. 2 can be switched to tow to rescue.
Example 2: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.
Power by Wide Voltage
The power of 3-12V supports high voltage servo.
