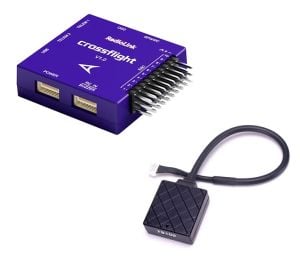

Radiolink Crossflight Uçuş Kontrol Kartı + TS100 Mini Gps
Vibration Damping by Software
Vibration Damping by Software same as the Mini Pix, it can effectively filter out high-frequency vibrations, ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable. Breaking the tradition, all the planes with fixed-wings, drones(including micro racing drones such as 210, 220, 250), and even helicopters do not need to add a mounting frame.

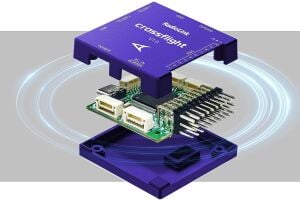

It has a shell completely closed to protect the interaction effects of air current wake on air pressure during flight.
The mainboard has an air pressure vent to ensure the accuracy of the barometer testing.
Shell design and vibration damping by software make Radiolink crossflight achieve a better Altitude Hold effect.
OSD Module Integrated
Real-time Gesture Visualization Display
crossflight can graphically display OSD information such as the flight direction and position of the aircraft in real time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates* of the aircraft at any time during the first-view (FPV) flight of aircraft such as racing drones and long-distance fixed-wing aircraft. Achieve a more comfortable flying experience.
10 Channels PWM Output
crossflight, with a 39.7*39.7*13mm mini size, supports up to 10 channels of PWM output, and is adaptable to Multirotor, Airplanes, helicopters, cars, and boats. It can be used in multiple industries such as aerial photography, public safety, aerial surveying and AEC, electricity, oil and gas, surveying and mapping, agriculture, education, and flight formation.
Mini Size as F4

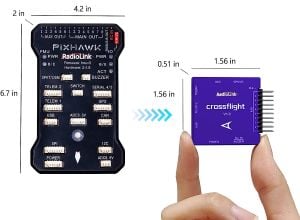

The dimension is only 39.7*39.7*13mm, which eliminates unnecessary redundant interfaces and reduces the complexity of installation, the total weight with connecting cables is 54 grams, which reduces the weight of the whole machine to lengthen the flight time and can be installed in small-sized high-speed aerial photography drones for stunt skiing and supercar promotional videos.
Cost-effective Solution
Flight controller crossflight, Radiolink M8N mini GPS TS100, 8 channels remote control system T8FB/T8S, ultrasonic sensor SU04/SUI04, almost all the parts of RC drone you need we can offer. Super adaptability of cost-effective solutions in various application fields such as cutting-edge UAV solutions, UAV education, agriculture, flight formation, educational companies, security and rescue, smart epidemic prevention, public safety, and cinematography solutions.
- OSD: GND, VOUT, VCC(5V), GND, VCC(5V), VIN
- GPS/I2C: GND, SDA(3.3 pullups), SCL(3.3V pullups), RX(IN 3.3V), TX(OUT 3.3V), VCC(5V)
- RC IN/BUZZER: VCC(5V), RC IN, GND, Null, BZ(-), BZ(+)
- POWER: VCC(5V), VCC(5V), Current, Voltage, GND, GND
- USB: Type-C
- TELEM1: VCC(5V), TX(OUT 3.3V), RX(IN 3.3V), GND
- TELEM2: VCC(5V), TX(OUT 3.3V), RX(IN 3.3V), GND
Update new information about crossflight;
1. it can support DShot/OneShot Protocol: please upgrade the firmware to the latest first, which can be downloaded.
https://www.radiolink.com/crossflight_firmware
2. it can support upgrade the firmware by both the Radiolink Mission Planner and ArduPilot Mission Planner but need to upgrade the firmware to the latest below first.
https://www.radiolink.com/crossflight_firmware
Parameters:
-
Connector: JST GH1.25 Connector
-
PWM Output: 10 PWM Output
-
Mavlink UART: 2(without CTSRTS)
-
USB Port: 1(Type-C)
-
GPS UART/I2C Port: 1
-
RC In Signal Input: PPM/SBUS
-
RSSI Output: Do not support
-
OSD Module: OSD Module Integrated
-
ESC Protocol: PWM
-
DSHOT Protocol: Do not support
-
ONESHOT Protocol: Do not support
-
Neopix Led: Support
-
Gripper Function: Support
-
RTK：Support
-
USB Voltage: 5V±0.3V
-
Servo Voltage: Not applicable
-
Operating Temperature: -40~80℃
-
Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat
-
Dimention: 39.7*39.7*13mm (1.56"*1.56"*0.51")
-
Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
-
Input Voltage: 2-12S
-
Input Current: 90A
-
Output Voltage: 5.1V
-
Output Current(BEC): 2.5A
-
Input Current(connect to one ESC only): 20A
-
Processor: HC32F4A0PITB
-
Gyro: ICM42670
-
Compass: VCM5883
-
Barometer: LPS22HB
-
FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes
Power Module Specifications:
Hardware Specification:
Package Content:
1 x Flight Control(crossflight)
1X TS100 MİNİ GPS
1 x Power Module(Support 2-12S)
1 x Buzzer
1 x I2C Transfer Board
1 x FC Status Indicate LED
1 x set of cables
1 x set of other accessories
Seramik antene tam olarak uyan LNA öncesi düşük kayıplı devre tasarımı, ideal filtre ile etkileşime girmesine rağmen son derece zayıf sinyalleri yakalama yeteneğini artırır. Optimize edilmiş devre düzeni, TS100'ün çok zayıf sinyalleri yakalayabildiğinden ve aynı zamanda giriş parazitlerinin etkili şekilde bastırıldığından emin olun. 50 santimetre konum doğruluğu, açık alanda ve vadi istasyonu tutma kabiliyetinde 6 uyduya 20 uydu yerleştirme. GPS / QZSS L1 C / A, GLONASS L10F, BeiDou B1 SBASL1 C / A'nın eş zamanlı alımı: WAAS, EGNOS, MSAS
GPS kod çözücü çipi: U-blox UBX-M8030 (M8), 72 kanallı Radiolink M8N GPS, tek GNSS 7N'den çok daha iyidir.
Jeomanyetik: QMC5883L, hangisi Honeywell'den HMC5983 ile aynı teknolojiye sahip
Anten: 2.5dbI yüksek kazanç ve seçicilik seramik anten
Çift filtre: SAWF (Yüzey akustik dalga filtresi) Murata'yı oluşturur.
