SUBSTITUTE
STM32L051 has substituted for STM32F051 on 3901-L0X because of MCU STM32F051 shortage.
Gallery
Spec.& INAV Settingss
ArduPilot settings
MSP V2 protocol
Resellers

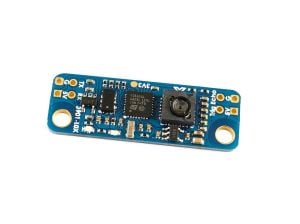

OPTiCAL FLOW & LiDAR SENSOR 3901-L0X
1.729,70 TL + KDV
Stok Kodu
T111
Fiyat
1.729,70 TL + KDV
KDV Dahil Fiyat
2.075,64 TL
Specifications
- Optical Flow: PMW3901
- Lidar: VL53L0X
- Interface UART
- Protocol: MSP
- Working Range: 8cm~200cm
- Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)
- Minimum Illumination >60Lux
- Input voltage: 4.5~5.5V
- Power Consumption: 40mA

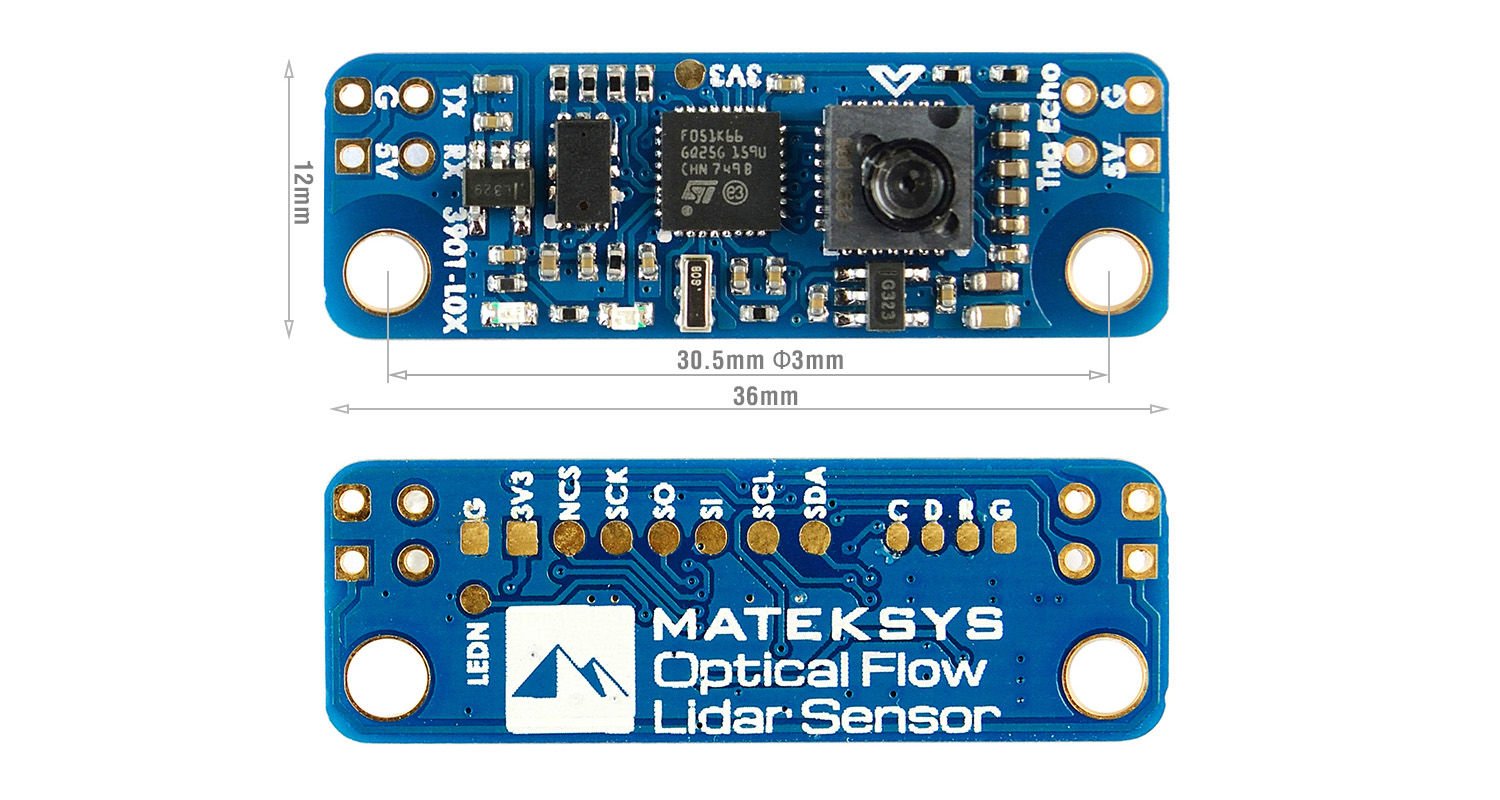

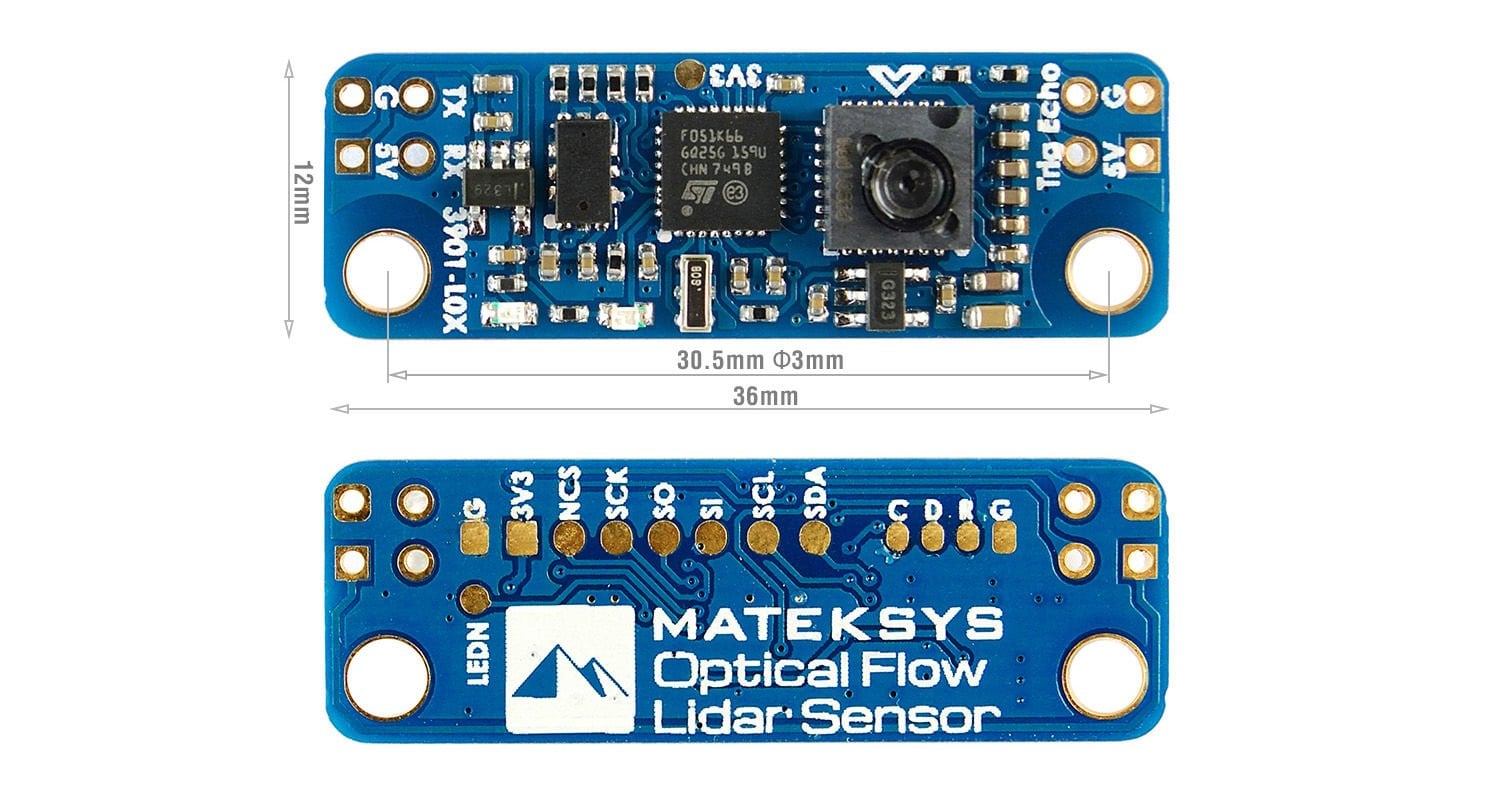

- Size: 36*12mm (F051 version), 2g
- Size: 36*13mm (L051 version) 2g
Packing
- Module 3901-L0X, 1pc
Tips
- Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.
- Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.
- Any unused UART of FC supports it
- Sonar connection (Trig & Echo) has not been implemented
OPTICAL FLOW & LIDAR SENSOR 3901-L0X
