Matek Micro BEC 6-60V to 5/9/12V
532,50 TL + KDV
Stok Kodu
XCVPFKMLHV
Fiyat
532,50 TL + KDV
KDV Dahil Fiyat
639,00 TL

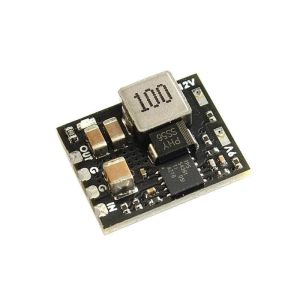

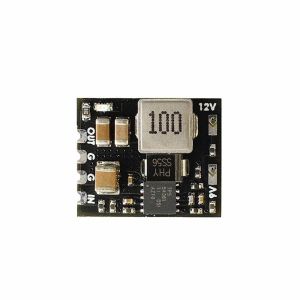

Micro BEC 6-60V to 5V/9V/12V-ADJ
- Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
- PCB 1mm wider.
- Identical performance as previous version.
- Wide 6V to 60V Operating Input Range
- Start-up Voltage >=6.7V
- VOut 5V, 9V or 12V Adj. Default is 5V.
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Continuous load current: Depends on input voltage and heat dissipation.
-
INPUT: 6-60V, Room Temperature. 22C, without additional heat sink 50V DC IN 24V DC IN 16V DC IN Output Ripple 5V OUT 1.8A cont. 2.3A cont. 2.8A cont. 20mV 3.5A Max. 2s/minute 9V OUT 1.5A cont. 2.1A cont. 2.6A cont. 30mV 3A Max. 2s/minute 12V OUT 1.3A cont. 2A cont. 2.5A cont. 30mV 3A Max. 2s/minute - Standby current: <5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm
- Size & Weight: 18×15(16)x4.5mm, 2g
- Packing: 1pc/package
