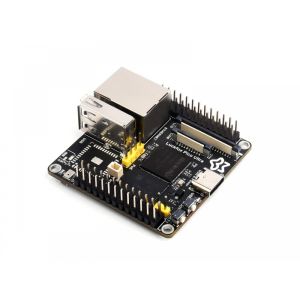

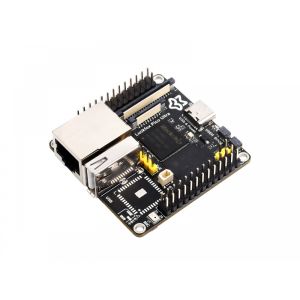

Luckfox Pico Ultra W Antenli RV1106

Luckfox Pico Ultra W Antenli RV1106

1.597,50 TL + KDV
Kategori
Bluetooth Modüller
Stok Kodu
D7
Fiyat
1.597,50 TL + KDV
KDV Dahil Fiyat
1.917,00 TL
ÜCRETSİZ KARGO
2000 TL ve Üzeri Tüm Siparişlerinizde Kargo Bedava
HIZLI GÖNDERİM
15:00'a Kadar Verilen Tüm Siparişler Aynı Gün Kargoda
GÜVENLİ ALIŞVERİŞ
Bilgileriniz 256 Bit SSL Sertifikası ile Güvenlik Altında
TAKSİTLİ ALIŞVERİŞ
Tüm Banka Kartlarına 12 Aya Kadar Varan Taksit İmkanı
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz
Ürün Bilgisi
Luckfox Pico Ultra series, front view Luckfox Pico Ultra series, features
Version Comparison
Model Luckfox Pico Ultra Luckfox Pico Ultra B
Processor RV1106G3 RV1106G2
NPU 1TOPS 0.5TOPS
Memory 256MB DDR3L 128MB DDR3L
Development Board Versions
Luckfox Pico Ultra series, version options
Optional for IPS LCD
Luckfox Pico Ultra series, optional for IPS LCD
LCD Kit connection example
Luckfox Pico Ultra series, LCD Kit connection example
4″ IPS Touch Display Introduction

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 480480 ARK, capacitive touch
LCD Specifications
Model 4inch IPS Touch Display
480x480		 4inch IPS Touch Display
720x720
Resolution 480×480 720×720
Communication Interface RGB666
SIZE 4"
Display Panel IPS
Touch Type Capacitive
Touch Chip GT911
Brightness 400cd/m²
Operation temperature -20~70°C
Contrast ratio 380:1 1000:1
Viewing Angle 160° 170°
Outline Dimension 84.2×84.2mm (H×V) 84.0×84.0mm (H×V)
Display area 71.86×70.18mm (H×V) 71.93×71.93mm (H×V)
Pixel pitch 0.1497×0.1462mm (H×V) 0.0999×0.0999mm (H×V)
DISPLAY COLOUR GAMUT - 68% NTSC
Development Board Introduction
Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Luckfox Pico Ultra series, integrates RV1106
  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

* the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W / Ultra BW series

Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Pico Ultra series, onboard reserved PoE module header
optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

Luckfox Pico Ultra series, optional for PoE Module Luckfox Pico Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

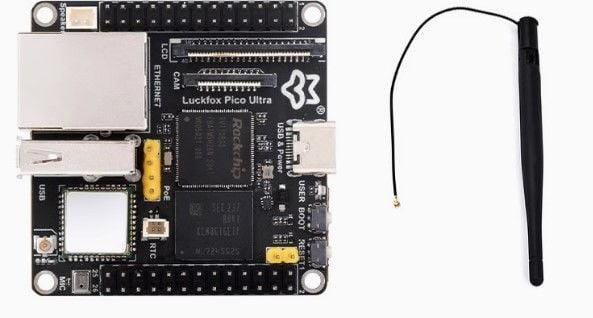

What's On Board
Luckfox Pico Ultra series, onboard components
  1. USB Type-C connector
    for power supply and program burning
  2. USER-LED
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. Onboard microphone
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A Interface
    Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected
  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ω 1W speaker
  3. RGB LCD Interface
  4. CSI camera interface
    MIPI CSI 2-lane
  5. RV1106G3/RV1106G2
    Vision processor SoC with built-in ARM Cortex-A7 core
  6. KLM8G1GETF-B041
    8GB EMMC
  7. RTC battery connector
  8. PoE module header
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
Pin definition
Luckfox Pico Ultra series, pin definition
outline dimensions
Luckfox Pico Ultra series, outline dimensions
