LuckFox Pico Plus RV1103 RISC-V Linux

LuckFox Pico Plus RV1103 RISC-V Linux

1.035,00 TL + KDV
Kategori
Bluetooth Modüller
Stok Kodu
T181
Fiyat
1.035,00 TL + KDV
KDV Dahil Fiyat
1.242,00 TL
ÜCRETSİZ KARGO
1000 TL ve Üzeri Tüm Siparişlerinizde Kargo Bedava
HIZLI GÖNDERİM
15:00'a Kadar Verilen Tüm Siparişler Aynı Gün Kargoda
GÜVENLİ ALIŞVERİŞ
Bilgileriniz 256 Bit SSL Sertifikası ile Güvenlik Altında
TAKSİTLİ ALIŞVERİŞ
Tüm Banka Kartlarına 12 Aya Kadar Varan Taksit İmkanı
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz
Ürün Bilgisi

Specifications
Processor Cortex A7@1.2GHz + RISC-V
NPU 0.5TOPS, supports int4, int8 and int16
ISP Input 4M @30fps (Max)
Memory 64MB DDR2
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 25 × GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage SPI NAND FLASH (128MB)

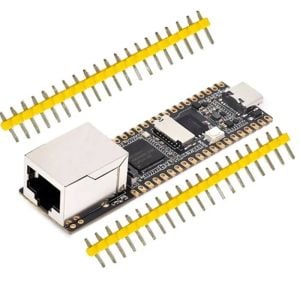

Pinheader Options
Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
  • Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY
Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

Application Example
Suitable For More Application Examples
Pin Definition

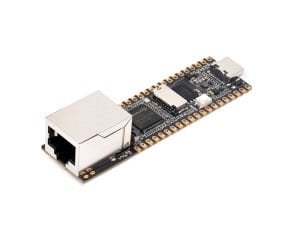

What's On Board
  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. TF card slot
  4. BOOT button
    Press it when powering on to enter download mode
  5. W25N01KV
    128MB SLC NAND FLASH
  6. RV1103
    Vision processor SoC with built-in ARM Cortex-A7 core

  1. CSI camera interface
    MIPI CSI 2-lane
  2. RJ45 Ethernet port
  3. GPIO header
  4. USB test pads
  5. BOOT test pad
  6. Microphone test pads
Product Show
Outline Dimensions
