Kakute H7 Mini + Tekko 45a Esc + Atlatl Hv
Tekko32 F4 4in1 mini 45A ESC
SPEC:
-
F4 MCU with BLHELI32 firmware
-
Maximum PWM output upto 96K (default 48K)
-
Amperage meter scale ratio has been adjusted to 168.
-
PWM input, TLM supported
-
Voltage output (VBAT)
-
NO output BEC
-
Supports oneshot / Multishot / Dshot PWM
-
Supports damped light
-
Supports 3-6S lipo input
-
Ext. cap needed for 6s (1000uf 35v for 6s usage.)
-
Mounting holes: 20x20mm(M3)
-
Size:30 x 39 mm
-
Weight: 7.2g

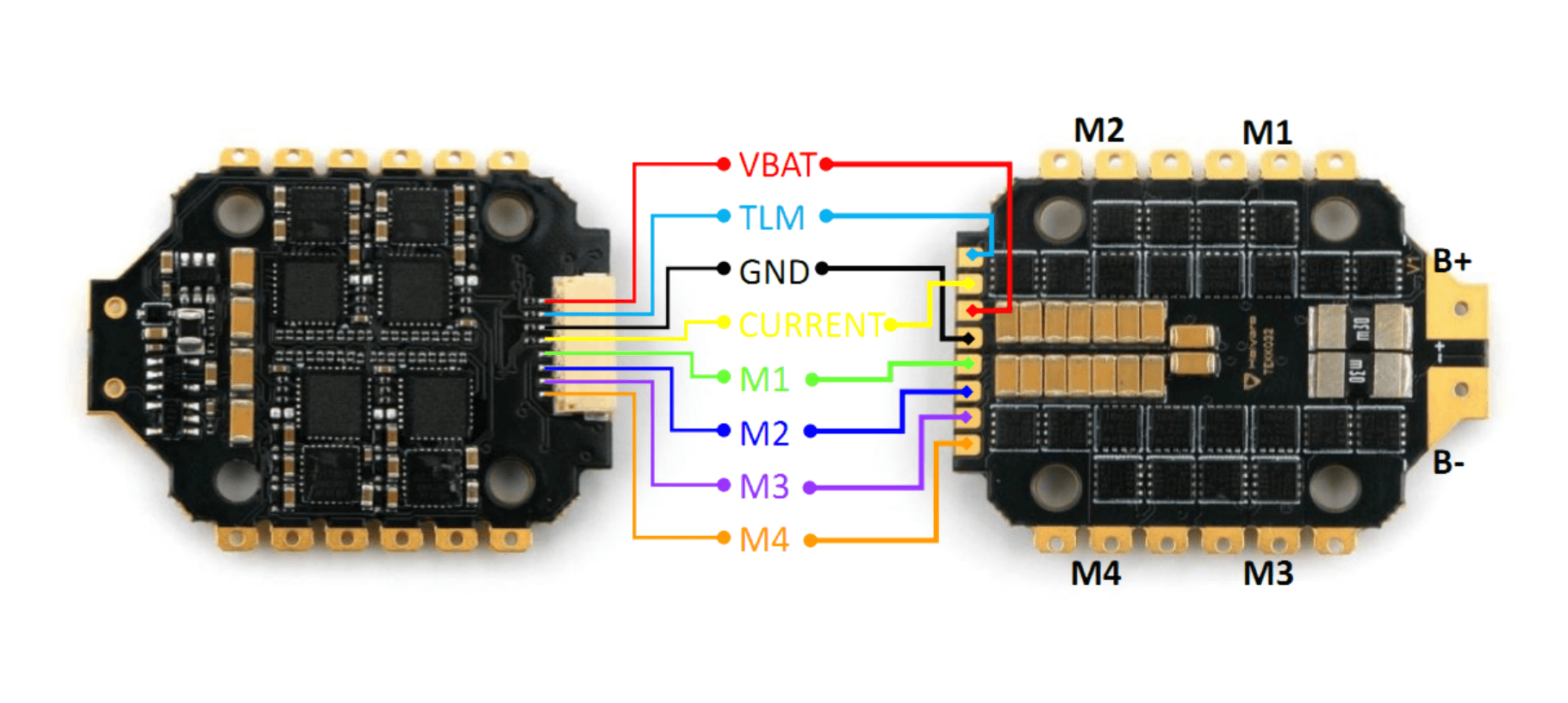

PIN MAP:
Tekko32 F4 Bigfet 4in1 50A ESC
F4 MCU / PWM output up to 96K / 4~6S / BLHELI32
Tekko32 F4 BigFET are made for those that uses 20x20 mount and also need the power of big MOSFET. The F4 MCU & quality big MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.
Features:
-
New F4 MCU, much faster than F3 & F0
-
PWM output up to 96K (default 48K)
-
20x20 Mount design with big MOSFET
-
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification:
-
Continuous Current: 50A x4
-
Burst Current: 60A x4
-
Supports 4-6S battery
-
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
-
ESC telemetry Supported
-
Onboard analog current sensor
-
No output BEC
-
BLHeli_32 firmware
-
1000uf 35v capacitor included (highly recommended for 6s setup)
-
Amperage meter scale ratio: 168
-
Dimensions: 39x36.5x6mm / Weight: 11.8g
-
Mounting holes: M4 30.5x30.5mm (M3 grommets included)
Atlatl HV micro
Features
-
Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
-
Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
-
SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
-
All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
-
MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
-
LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
-
Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
-
0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
-
Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
-
Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
Specifications
-
Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
-
Audio: 6.5 MHz Mono
-
Protocol：smart audio2.0
-
Antenna Connector: MMCX
-
Input Voltage: 7 to 28 volts (2-6S LiPo)
-
Dimensions: 30x26mm
-
Mounting Holes: Standard 20mm square to center of holes (M3)
-
Weight: 3.6g

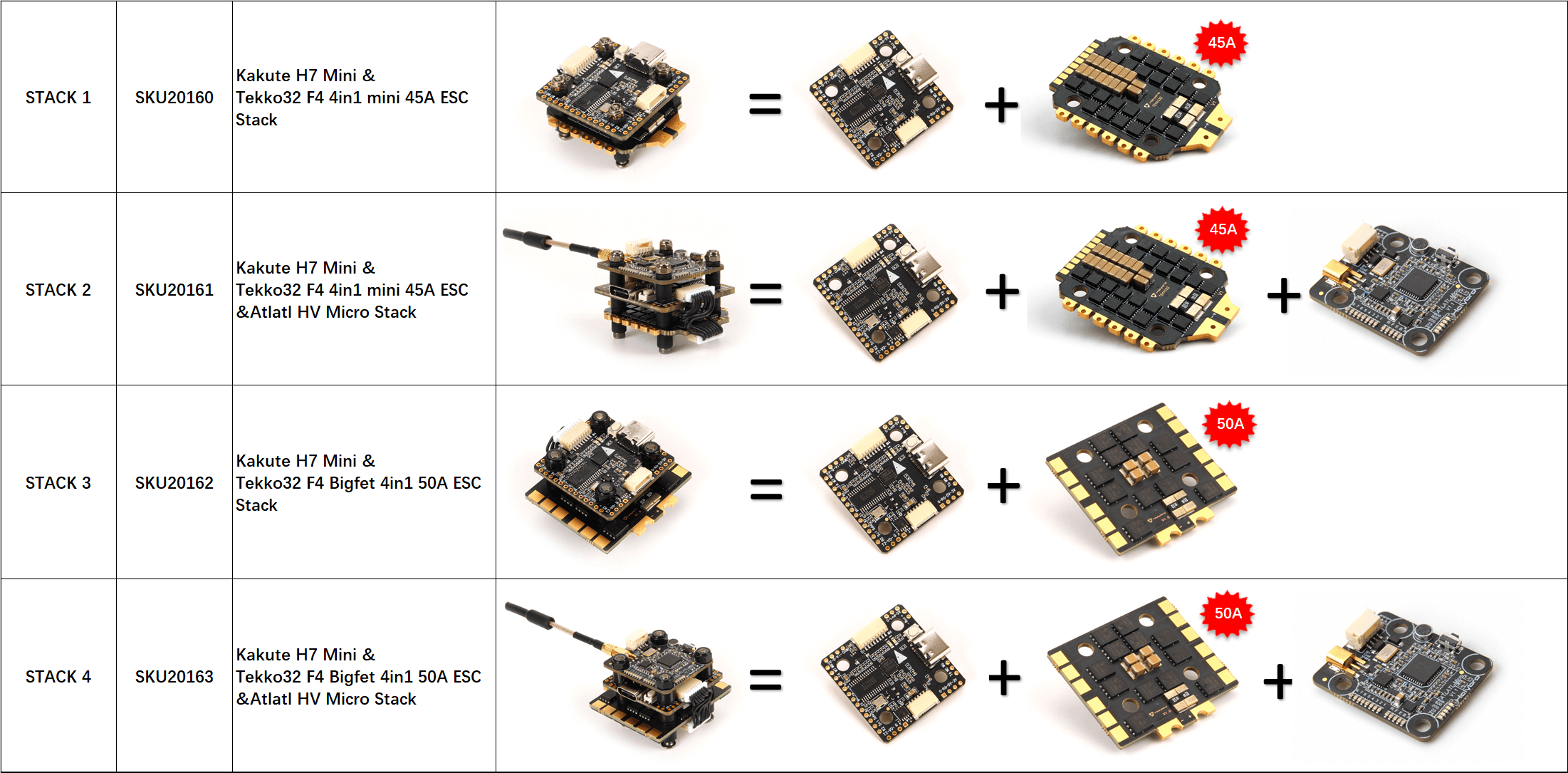

Package Includes:
SKU20160 Kakute H7 Mini+Tekko32 F4 4in1 mini 45A ESC Stack
SKU20162 Kakute H7 Mini+Tekko32 F4 Bigfet 4in1 50A ESC Stack
1x Kakute H7 Mini STACK
1x Electrolytic capacito: 1000uF 35v *1
1x JST SH 8pin to 8pin 65mm cable *1
1x JST SH 8pin to 8pin 25mm cable *1
1x JST SH 6pin 150mm cable*1 (The cable that goes to the CADDX Vista Air Unit is included.)
1x JST SH 6pin to GH 8pin 150mm cable*1 (The cable that goes to the DJI Air Unit is included.)
1x JST SH 6pin to GH 8pin 80mm cable*1 (The cable that goes to the DJI Air Unit is included.)
SKU20161 Kakute H7 Mini+Tekko32 F4 4in1 mini 45A ESC +Atlatl HV Micro Stack
SKU20163 Kakute H7 Mini+Tekko32 F4 Bigfet 4in1 50A ESC+Atlatl HV Micro Stack
1x Kakute H7 Mini STACK
1x Electrolytic capacito: 1000uF 35v *1
1x JST SH 8pin to 8pin 65mm cable *1
1x JST SH 8pin to 8pin 25mm cable *1
1x JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)
1x JST SH 6pin to GH 8pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
1x JST SH 6pin to GH 8pin 80mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
1x 80mm SMA--MMCX Cable
1x 60mm Antenna
1x 150mm 4pin JST GH wire
