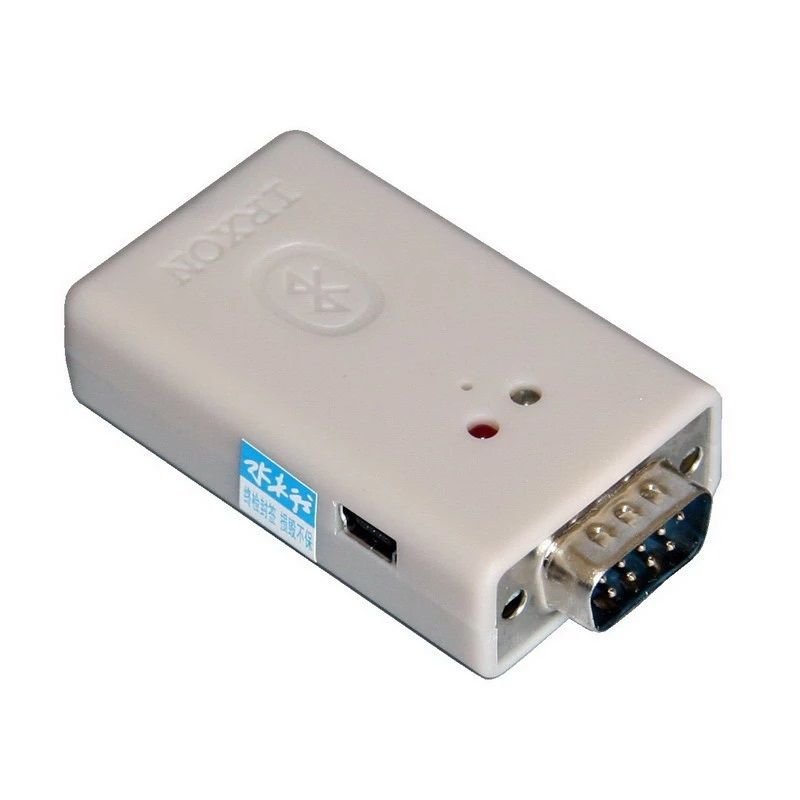

IRXON BT5701 R232 Seri Port Bluetooth Adaptörü
1.242,00 TL + KDV
Kategori
Stok Kodu
XX28
Fiyat
1.242,00 TL + KDV
KDV Dahil Fiyat
1.490,40 TL

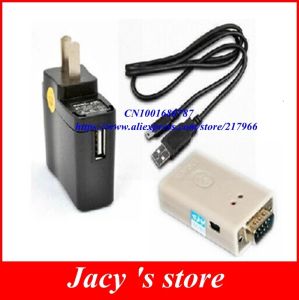

Model BT5701 serial port Bluetooth adapter one
1000mA high quality USB interface, 220V-5V power adapter one
• 410mAh lithium battery (built-in)
USB-MiniUSB cable one
A copy of the instruction manual
Please notice, if your equipment is DB9 male connector, you can not use DB9 Female to female to convert direct. only use No.2 and No.3 crossing wire version to set AT command.
Or please choose our BT578
LiProduct function and characteristics
The main function of BT5701 serial port Bluetooth adapter is to replace traditional RS232 serial communication cable. BT5701 has embedded Bluetooth SPP protocol software, which can change the wired serial port connection into wireless Bluetooth serial port connection, thus replacing the traditional serial communication cable and realizing wireless serial communication. For those who do not want to have too many lines of industry, medical, commercial, mapping and other fields of application, this product provides a simple and efficient solution for wireless serial communication.
- this product embedded Bluetooth protocol software, therefore does not need to install the driver, can be used in the operating system interface, and also can be used in any interface but has a standard RS232 serial port device.
The wired serial to wireless serial port adapter is done automatically in the interior, for the user, or the common serial communication, serial cable is connected with the former and not what is different, application developers need not know the details of the Bluetooth technology, as long as the preparation of serial communication code. This is called transparent serial communication.
- support Bluetooth Serial (SPP), Port Profiles and notebook computer with Bluetooth function, Bluetooth adapter with USB desktop computer, handheld Bluetooth PDA, Bluetooth GPS support Bluetooth SPP protocol of Bluetooth serial communication equipment.
Built in high quality 400mA lithium battery, the adapter can provide nearly 24 hours of work power. The user can power the adapter through the MiniUSB interface on the adapter and charge the internal lithium battery.
The user can through the AT command set from 1200BPS to 115200bps a total of eight different baud rate (the default value is 9600, N, 8,1), you can also set a more personalized name for Bluetooth devices, or modify the default Bluetooth pairing password.
• transmit power in line with the Bluetooth Class2 standard, built-in high sensitivity PCB printed antenna, stable communication distance of up to 15 meters, can pass through the wall for wireless serial communication.
CSR Bluetooth chip - the Bluetooth 2 standard, automatic frequency hopping rate performance and its enhanced error, can ensure the safe and efficient communication, and has stronger anti-interference ability, guarantee the stability and reliability of communication.
LiMarket and Application
The purpose of using BT5701 is to replace the original serial cable connection, but how to replace the user before buying the product should have a clear plan. Here are some typical ways to use BT5701 products.
The BT5701 is connected to Bluetooth, notebook, USB, Bluetooth adapter, Bluetooth, PDA and other Bluetooth devices, which is the most common use of BT5701. The machine is installed in the serial device, waiting for the Bluetooth master device to find, when the main equipment to find BT5701 from the machine after a pairing request from the master device, and the main equipment to enter the correct password verification from machine matching (BT5701 factory default pairing password is 0000), paired connected after the completion of the main Bluetooth system the equipment is assigned a Bluetooth virtual serial port number for the Bluetooth connection, the application after operation on a host device only needs to use the serial number to serial communication with the BT5701, and then connected with serial Bluetooth adapter serial device for serial communication.
The BT5701 slave and BT5701 host are paired. The host computer and Slave Slave are respectively connected with two serial ports connected by the original serial cable. After the host is powered on, it automatically searches the slave machine and completes the pairing connection with the slave. After the connection is successful, the Bluetooth status indicator of the host and slave is no longer blinking and becomes a long bright state. Host and slave connection, even if the baud rate is different, you can also transfer data each other. The master slave pairing can be used without setting up, and the two modules can communicate with each other after they are powered on. If the host and slave are too far apart, the connection is interrupted, and the Bluetooth status indicator of the host and slave will revert to the flicker state before they are connected. They will automatically revert to the connection state when they are close again.
The BT5701 host connects Bluetooth to use from the device. Currently on t
