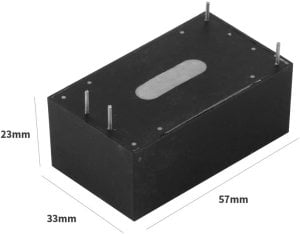

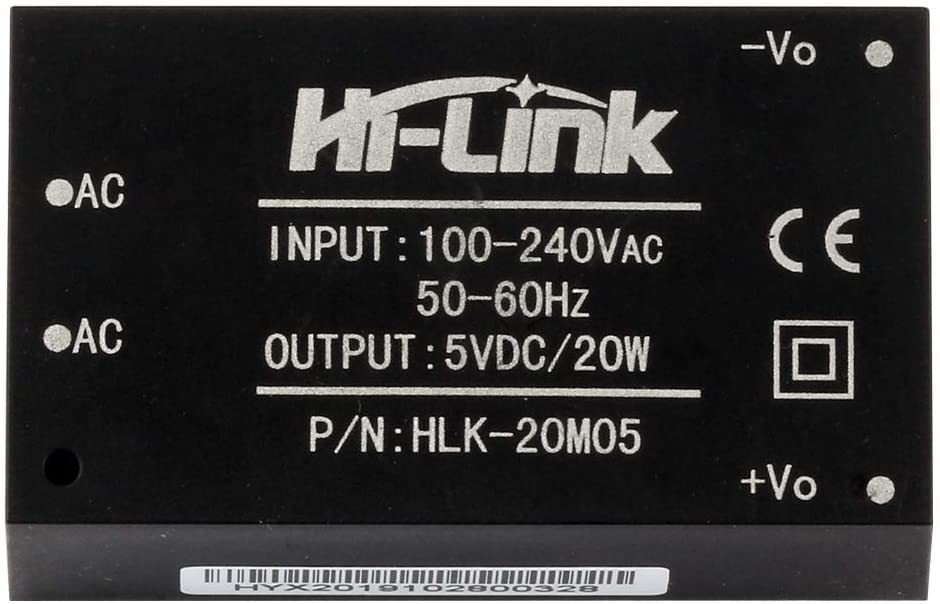

Hi-Link Ac 220v -Dc 5V Dönüştürücü 20W Güç kaynağı HLK-20M05 4000ma
276,00 TL + KDV
Kategori
Stok Kodu
R257
Fiyat
276,00 TL + KDV
KDV Dahil Fiyat
331,20 TL
1. Ultra-thin, small, industry's smallest volume
2. Universal universal input voltage (90 ~ 265Vac)
3. Low power consumption, environmental protection, no-load loss <0.1W
4. Low ripple and low noise
5. Good output short circuit and over current protection and self-recovery
6. High efficiency and high power density
7. Input and output isolation withstand voltage 3000Vac
8. 100% full load aging and testing
9. High reliability and long life design, continuous working time is more than 100,000 hours
10. Meet UL and CE requirements; product design meets EMC and safety testing requirements
11. Adopt high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
12. Economical solution, high cost performance
13. Works without external circuit
14. 1 year warranty
Environmental conditions:
Working environment temperature: -25? + 60 ?
Storage temperature: -40? + 80 ?
Relative humidity: 5-95%
Cooling method: Natural cooling
Atmospheric pressure: 80?106 Kpa
Altitude: ?2000 m
Vibration coefficient: 10 ~ 500Hz, 2G10min./1cycle, 60min.each along X, Y, Z axes (meet the requirements of secondary road transportation)
2. Universal universal input voltage (90 ~ 265Vac)
3. Low power consumption, environmental protection, no-load loss <0.1W
4. Low ripple and low noise
5. Good output short circuit and over current protection and self-recovery
6. High efficiency and high power density
7. Input and output isolation withstand voltage 3000Vac
8. 100% full load aging and testing
9. High reliability and long life design, continuous working time is more than 100,000 hours
10. Meet UL and CE requirements; product design meets EMC and safety testing requirements
11. Adopt high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
12. Economical solution, high cost performance
13. Works without external circuit
14. 1 year warranty
Environmental conditions:
Working environment temperature: -25? + 60 ?
Storage temperature: -40? + 80 ?
Relative humidity: 5-95%
Cooling method: Natural cooling
Atmospheric pressure: 80?106 Kpa
Altitude: ?2000 m
Vibration coefficient: 10 ~ 500Hz, 2G10min./1cycle, 60min.each along X, Y, Z axes (meet the requirements of secondary road transportation)
