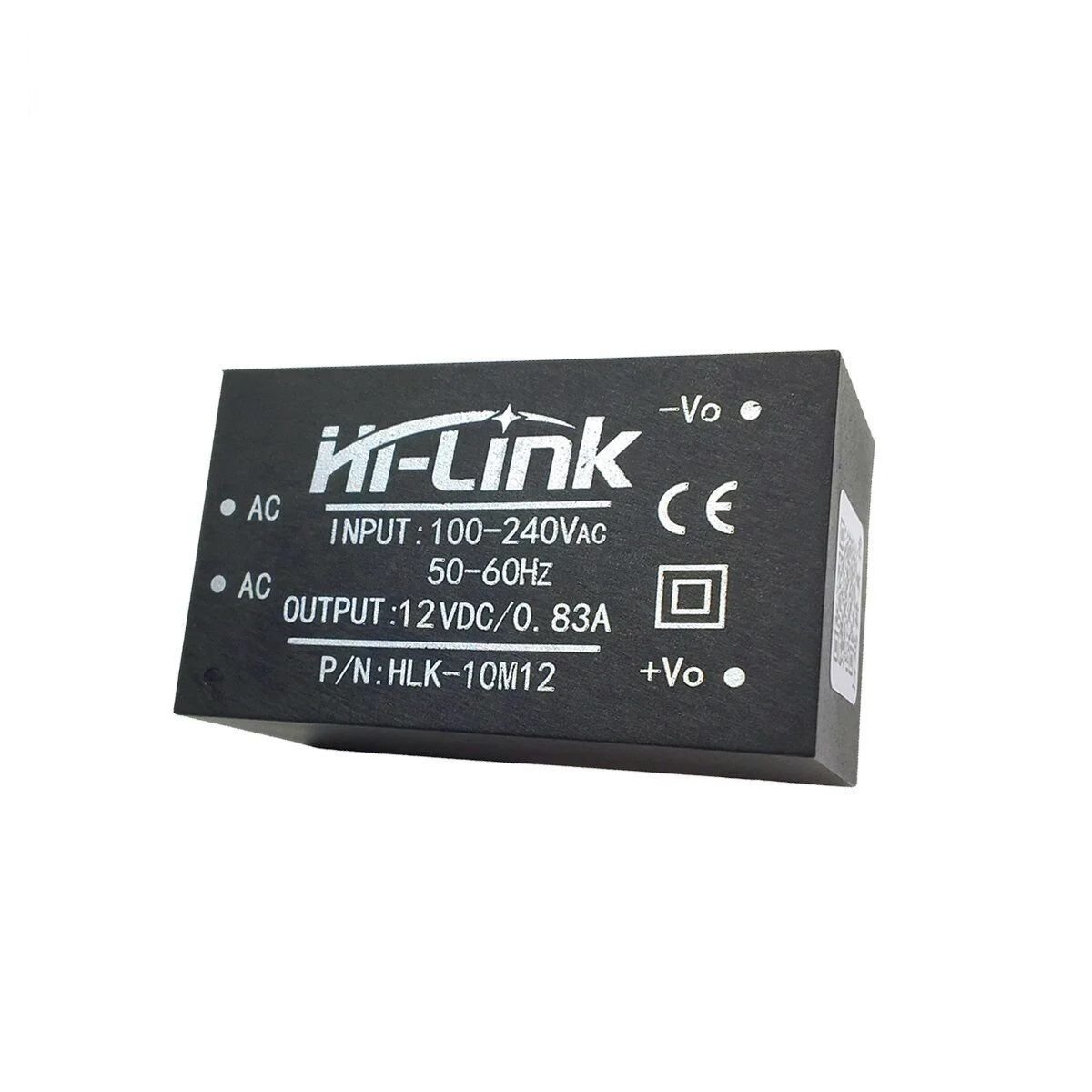

Hi-Link Ac 220v -Dc 12V Dönüştürücü 10W Güç kaynağı HLK-10M12 830ma
269,10 TL + KDV
Kategori
Stok Kodu
R262
Fiyat
269,10 TL + KDV
KDV Dahil Fiyat
322,92 TL
Product Features:
1. ultra-thin, subminiature
2. Full voltage Input (90 ~ 245 vac)
3. Low ripple and low noise
4. Output Overload protection against short circuit Functions
5. High efficiency and power density
6. Product design to meet the cem and safety tests Requirements
7. Low power consumption, green environmental protection, no load loss <0.1 W
8. Meet the requirements of UL, CE, if you want to do the certification, you have to add the external circuit, please leave us your mail address, we will send you the schema of this part.
10. The quality guarantee period of 1 year.
Environmental conditions
Technical indicators: single bit
Operating temperature: -20-60 + degree
Storage temperature: + 80-40 degrees
Relative Humidity: 5-95%
Cooling way: natural cooling
Atmospheric pressure: 80-106Kpa
Altitude: 2000 M or less
Vibration:Vibration Coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
Security features:
Product design to meet the requirements of UL, CE safety certification.
Electromagnetic compatibility and safety
The input design uses UL 0.5A insurance;
PCB board made of double-sided copper clad panels is 94-where V0 fire resistance level;
Safety standards in accordance with UL1012 EN60950, UL60950
Insulation voltage i / p-o / P: 2500 vac
Insulation resistance I / p-o / P> 100 m Ohms / 500 VDC 25 degrees 70% hr
Conduction and radiation in line with en55011, EN55022 (CISPR22)
Electrostatic discharge IEC / EN 61000-4-2 level 4 8 kv / 15 kv
Radio frequency immunity IEC / EN 61000-4-3 is in the application
Design temperature safety:At normal temperature on our power capacitor, the main converter as well as the surface temperature does not exceed 90 degrees; The maximum temperature of the hull surface does not exceed 60 degrees.
1. ultra-thin, subminiature
2. Full voltage Input (90 ~ 245 vac)
3. Low ripple and low noise
4. Output Overload protection against short circuit Functions
5. High efficiency and power density
6. Product design to meet the cem and safety tests Requirements
7. Low power consumption, green environmental protection, no load loss <0.1 W
8. Meet the requirements of UL, CE, if you want to do the certification, you have to add the external circuit, please leave us your mail address, we will send you the schema of this part.
10. The quality guarantee period of 1 year.
Environmental conditions
Technical indicators: single bit
Operating temperature: -20-60 + degree
Storage temperature: + 80-40 degrees
Relative Humidity: 5-95%
Cooling way: natural cooling
Atmospheric pressure: 80-106Kpa
Altitude: 2000 M or less
Vibration:Vibration Coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
Security features:
Product design to meet the requirements of UL, CE safety certification.
Electromagnetic compatibility and safety
The input design uses UL 0.5A insurance;
PCB board made of double-sided copper clad panels is 94-where V0 fire resistance level;
Safety standards in accordance with UL1012 EN60950, UL60950
Insulation voltage i / p-o / P: 2500 vac
Insulation resistance I / p-o / P> 100 m Ohms / 500 VDC 25 degrees 70% hr
Conduction and radiation in line with en55011, EN55022 (CISPR22)
Electrostatic discharge IEC / EN 61000-4-2 level 4 8 kv / 15 kv
Radio frequency immunity IEC / EN 61000-4-3 is in the application
Design temperature safety:At normal temperature on our power capacitor, the main converter as well as the surface temperature does not exceed 90 degrees; The maximum temperature of the hull surface does not exceed 60 degrees.
