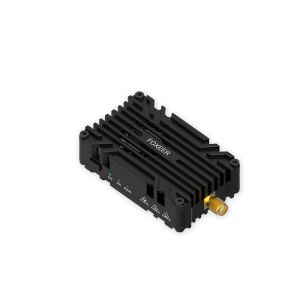

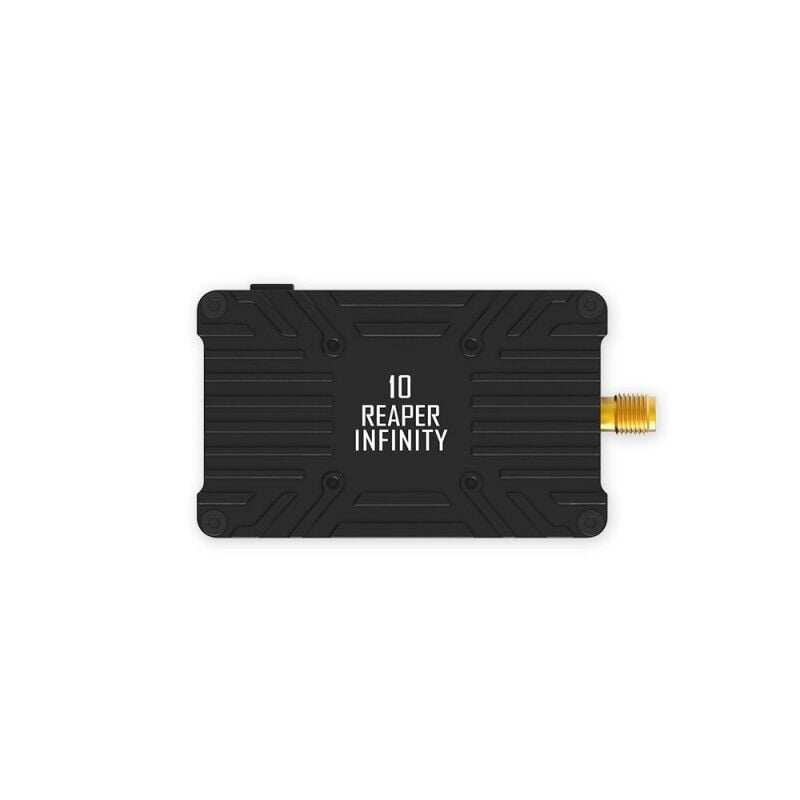

Foxeer 4.9G~6G Reaper Infinity 10W 80CH VTx
7.960,00 TL + KDV
Kategori
Stok Kodu
5E9MW4GQ5S
Fiyat
7.960,00 TL + KDV
KDV Dahil Fiyat
9.552,00 TL
Güç seviyesini ve frekansı ayarlayın: VTx üzerindeki Tramp Rx pin kablosunun FC'ye bağlanması durumunda, düğme çalışmaz
| Name | Reaper Infinity 10W |
| Input Voltage | 9~36V |
| Output Voltage | 5V |
| Channels | 80CH |
| Power | 1W/2.5W/5W/7.5W/10W |
| Pit | Double click to enter |
| Weight | 48g |
| Mounting Hole | 20*20mm M2 with 2.5mm depth |
| Size | 66*37*16mm |
| Connector | SMA |

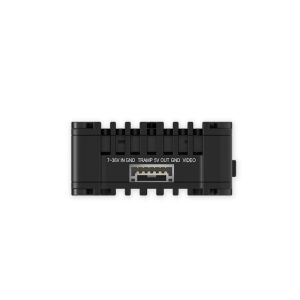

| Cable Connector | GH1.25 6P |
| Consumption | 10V/3.3A & 20V/1.5A; 10W |
| Package Include | 1 x VTx, 1 x silicon cable |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
PIT On/Off:
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
