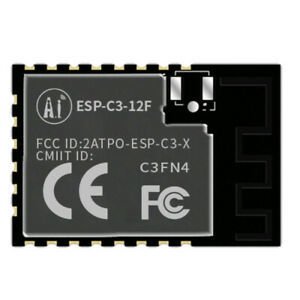

ESP-C3-12F Wifi + Bluetooth 4MB Ble 5.0
207,00 TL + KDV
Kategori
Stok Kodu
T50
Fiyat
207,00 TL + KDV
KDV Dahil Fiyat
248,40 TL
- The ESP32-C3 is a low cost RISC-V MCU with 802.11n WIFI and Bluetooth 5.0 LE capability. The ESP-C3-12F module combines the ESP32-C3 with 4MB of SPI flash, a PCB antenna, and a breakout board. It is pin compatible with the ESP-12F.
- ESP32-C3 family is an ultra-low-power and highly-integrated MCU-based SoC solution that supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE)
- 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160 MHz
- IEEE 802.11 b/g/n-compliant • Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band • 1T1R mode with data rate up to 150 Mbps • 4 × virtual Wi-Fi interfaces
- Compatible with Arduino, MicroPython, and NodeMCU • Applications include: Lighting control, smart buttons, smart plugs, robotics, mesh networking, industrial field buses, health monitors, audio devices, proximity sensors, smart agriculture, and so much more
Package: SMD-22
Size: 24.0x16.0x3.1mm (±0.2mm)
Antenna: Onboard PCB antenna
Compatible spectrum range: 2400 - 2483.5MHz
Operating temperature: -40℃ - 85℃
Storage environment: -40℃ - 125℃, <90% RH
Supply voltage: 3.0V-3.6V, supply current >500mA
Supported interfaces: UART / GPIO / ADC / PWM / I2C / I2S
IO ports: IO0,IO1,IO2,IO3,IO4,IO5,IO6,IO7,IO8,IO9,IO10,IO18,IO19,IO20,IO21
serial port speed: support 110-4608000bps, default 115200bps
Bluetooth: BLE 5.0
security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
