ESP-C3-12F Geliştirme Kartı 4 Mb
254,80 TL + KDV
Kategori
Stok Kodu
S34
Fiyat
254,80 TL + KDV
KDV Dahil Fiyat
305,76 TL

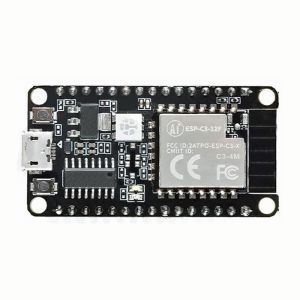

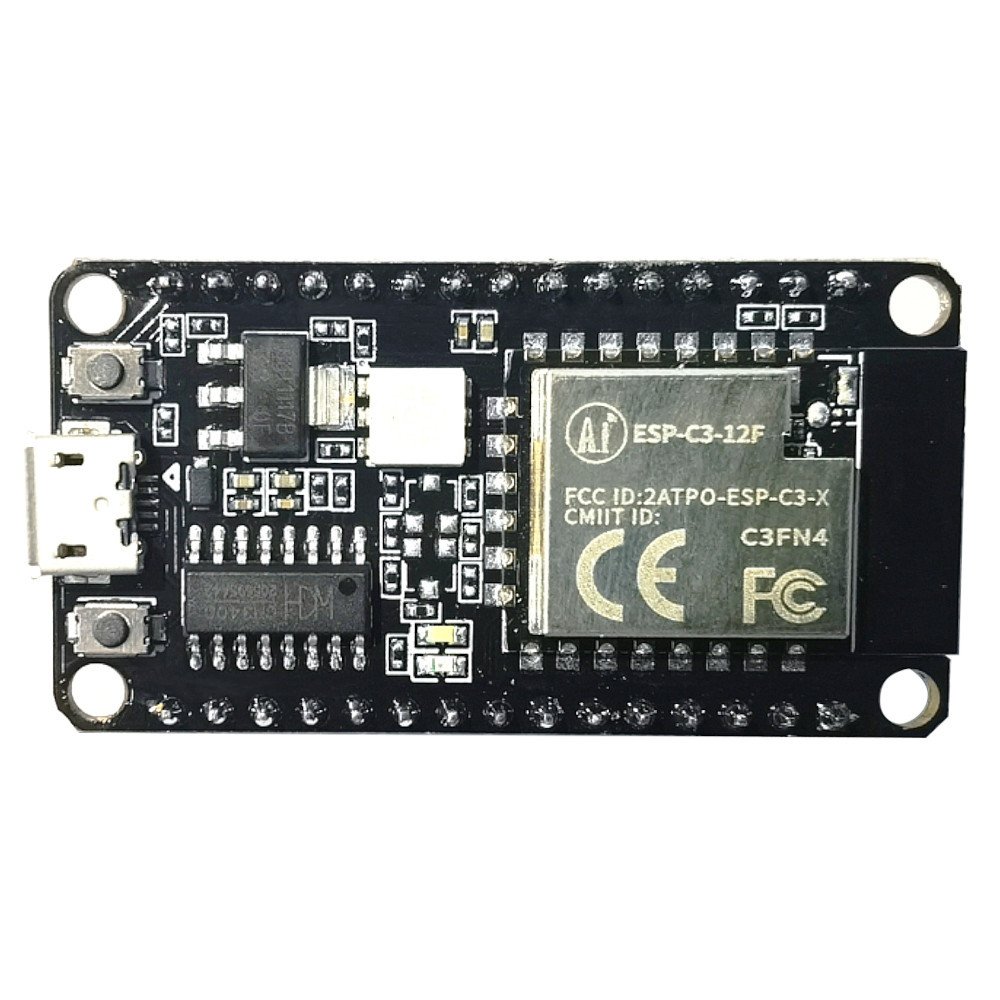

• The ESP32-C3 is a low cost RISC-V MCU with 802.11n WIFI and Bluetooth 5.0 LE capability. The ESP-C3-12F development board combines the ESP32-C3 with 4MB of SPI flash, a PCB antenna, a breakout board, a USB TTL serial adapter, and an RGB LED. It is pin compatible with the popular ESP-12E development boards.
• ESP32-C3 family is an ultra-low-power and highly-integrated MCU-based SoC solution that supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE)
• 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160 MHz
• IEEE 802.11 b/g/n-compliant • Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band • 1T1R mode with data rate up to 150 Mbps • 4 × virtual Wi-Fi interfaces
• Compatible with Arduino, MicroPython, and NodeMCU • Applications include: Lighting control, smart buttons, smart plugs, robotics, mesh networking, industrial field buses, health monitors, audio devices, proximity sensors, smart agriculture, and so much more
Model: ESP-C3-12F-KIT development board

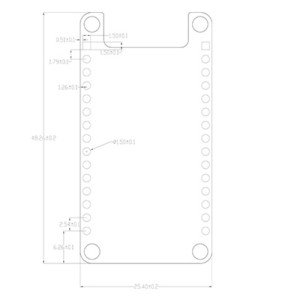

Package size: DIP-30 24.0x16.0x3.1mm (± 0.25mm)
Antenna: On-board PCB antenna
Spectrum range: 2400 - 2483.5MHz
Operating temperature: -40℃ - 85℃
Storage environment: -40℃ - 125℃, <90% RH
Power Supply Requirement: 5V >500mA
Supported Interfaces: UART / GPIO / ADC / PWM / I2C / I2S

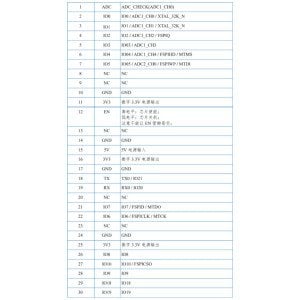

IO Ports: IO0, IO1, IO2, IO3, IO4, IO5, IO8, IO9, IO10, IO18, IO19, IO20, IO21
Serial port speed: 110 - 4608000 bps, default 115200 bps
Bluetooth: BLE 5.0
Security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
Onboard RGB LED: IO3 Red, IO4 Green, IO5 Blue
• ESP32-C3 family is an ultra-low-power and highly-integrated MCU-based SoC solution that supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE)
• 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160 MHz
• IEEE 802.11 b/g/n-compliant • Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band • 1T1R mode with data rate up to 150 Mbps • 4 × virtual Wi-Fi interfaces
• Compatible with Arduino, MicroPython, and NodeMCU • Applications include: Lighting control, smart buttons, smart plugs, robotics, mesh networking, industrial field buses, health monitors, audio devices, proximity sensors, smart agriculture, and so much more
Model: ESP-C3-12F-KIT development board
Package size: DIP-30 24.0x16.0x3.1mm (± 0.25mm)
Antenna: On-board PCB antenna
Spectrum range: 2400 - 2483.5MHz
Operating temperature: -40℃ - 85℃
Storage environment: -40℃ - 125℃, <90% RH
Power Supply Requirement: 5V >500mA
Supported Interfaces: UART / GPIO / ADC / PWM / I2C / I2S
IO Ports: IO0, IO1, IO2, IO3, IO4, IO5, IO8, IO9, IO10, IO18, IO19, IO20, IO21
Serial port speed: 110 - 4608000 bps, default 115200 bps
Bluetooth: BLE 5.0
Security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
Onboard RGB LED: IO3 Red, IO4 Green, IO5 Blue
