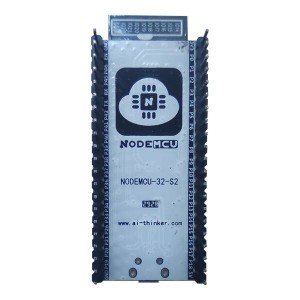

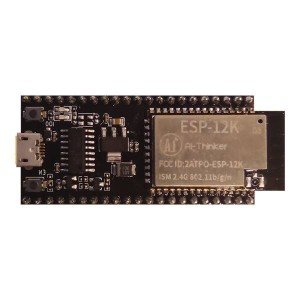

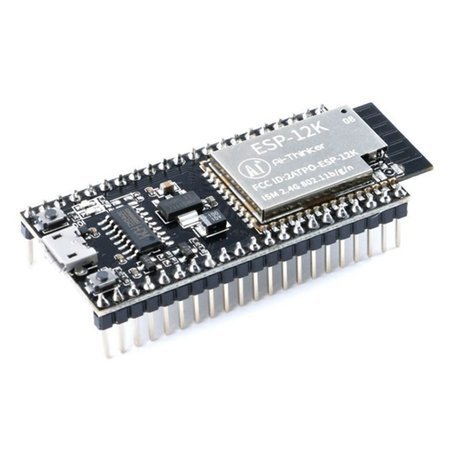

ESP-12K Nodemcu-32-S2 Geliştirme Kartı
379,50 TL + KDV
Kategori
Stok Kodu
T49
Fiyat
379,50 TL + KDV
KDV Dahil Fiyat
455,40 TL
ESP-12K Board
Product Introduction:
ESP32-S2 is a powerful Wi-Fi module. The core processor ESP32-S2 of the module is a highly integrated low-power Wi-Fi system-on-chip (SoC) designed for the Internet of Things (IoT), mobile Designed for various applications such as devices, wearable electronic devices, and smart homes. ESP32-S2 has industry-leading low-power performance and RF performance, supports IEEE802.1 1b/g/n protocol, integrates Wi-Fi MAC, Wi-Fi RF and baseband, RF switch, RF Balun, power amplifier, low frequency Noise amplifier, etc.
Product parameter :
Antenna form: onboard PCB antenna/IPEX holder
Spectrum range: 2400 ~2483.5MHz
Working temperature: -40°C~ 85 °C
Storage environment: -40°C- 125 °C, <90%RH
Power supply range: power supply voltage 3.0V ~ 3.6V, power supply current>500mA
Support interface: UART/GPIO/ADC/PWM/SPI/I2C/L CD/I2S/Camera/IRUSB/DAC
Serial port rate: support 110~4608000 bps, the default is 115200 bps
Security: WEP/WPA-PSK/WPA2-PSK
SPI Flash: default 32Mbit
Pin definition:
3.3V:power supply
GPIO0:RTC_ GPIOO
GPIO1:RTC_ GPIO1, TOUCH1, ADC1 -CHO
GPIO2:RTC_ GPIO2, GPIO2, TOUCH2, ADC1 _CH1
GPIO3:RTC_ GPIO3, GPIO3, TOUCH3, ADC1 CH2
GPIO4:RTC_ GPIO4, TOUCH4, ADC1_CH3
GPIO5:RTC_ GPIO5, TOUCH5, ADC1 CH4
GPIO6:RTC_ GPIO6, TOUCH6, ADC1_ CH5
GPIO7:RTC_ GPIO7, TOUCH7, ADC1 CH6
GPIO8:RTC GPIO8, TOUCH8, ADC1 CH7
GPIO9:RTC_ GPIO9, TOUCH9, ADC1_ _cH8, FSPIHD
GPIO10:RTC GPIO10, TOUCH10, ADC1 _CH9, FSPICSO, FSPIIO4
GPIO11:RTC_ GPIO11. TOUCH11, ADC2. _cH0, FSPID, FSPIIO5
GPIO12:RTC_ GPIO12, TOUCH12, ADC2 CH1, FSPICLK, FSPIIO6
GPIO13:RTC _GPIO13, TOUCH13, ADC2 CH2, FSPIQ, FSPIIO7GPIO14: RTC_
GPIO14：TOUCH14, ADC2 _cH3, FSPIWP, FSPIDQSGPIO15: RTC GPIO15, UORTS, ADC2 cH4, XTAL _32K P
GPIO16:RTC GPIO16, U0CTS, ADC2_ CH5, XTAL_ 32K N
GPIO17:RTC GPIO17, U1TXD, ADC2_ CH6, DAC _1
GPIO18:RTC_ GPIO18, U1RXD, ADC2_ CH7, DAC 2, CLK_ OUT3
5V:power supply
GND:Ground
GPIO19:RTC GPIO19, U1RTS, ADC2 CH8, CLK OUT2, USB _D-
GPIO20:RTC GPIO20,U1CTS, ADC2 _CH9, CLK OUT1,USB _D+
GPIO21:RTC_ GPIO21,
GPIO26:SPICS1
GPIO33:SPIIO4, FSPIHD
GPIO34:SPIIO5, FSPICSO
GPIO35:SPIIO6, FSPID
GPIO36:SPIIO7, FSPICLK
GPIO37:SPIDQS, FSPIQ
GPIO38:FSPIWP
GPIO39:MTCK, CLK_ OUT3
GPIO40:MTDO, CLK_ OUT2
GPIO41:MTDI, CLK_ _OUT1
GPIO42:MTMS
GPIO43/TX:U0TXD, CLK_ OUT1
GPIO44/RX:U0RXD, CLK_ OUT2
GPIO45
GPIO46
EN:high level: chip enable; low level: chip off (pulled high by default)
GND:Ground
ESP-12KModule
Product Introduction:
ESP-12K is a powerful WiFi module. The core processor of the module, ESP32-S2, is a highly integrated low-power WiFi system-on-chip (SoC) designed for the Internet (loT), mobile devices, and wearable electronics. Designed for various applications such as devices, smart homes, etc. ESP32-S2 has industry-leading low-power performance and RF performance, supports IEE802.11b/g/n protocol, integrates WiFi MAC, WiFi RF and baseband, RF switch, RF Balun, power amplifier, low noise amplifier, etc.
Product Parameter：
Antenna form: onboard PCB antenna/IPEX holder
Spectrum range: 2400 ~2483.5MHz
Working environment: -40 °C ~ 85 °C
Storage environment: -40 °C ~ 125 °C. <90%RH
Power supply range: power supply voltage 3.0V ~ 3.6V, power supply current>500mA
Support interface: UART/GPIO/ADC/PWM/SPI/I2C/L CD/I2S/Camera/IRUSB/DAC
Serial port rate: support 110 ~4608000 bps, default 115200 bps zîl't: WEP/WPA-PSK/WPA2-PSK
SPI Flash: Default 32Mbit
PSRAM: Without PSRAM
Product size: 31.0*18.0*3.0(±0.2)MM
Pin Definition：
