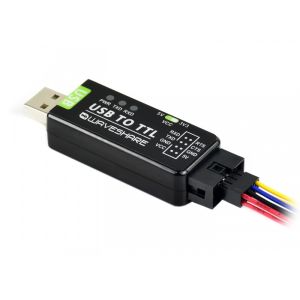

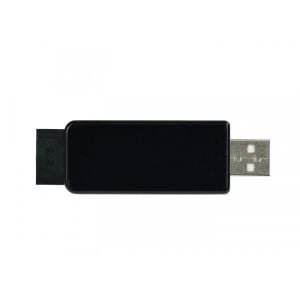

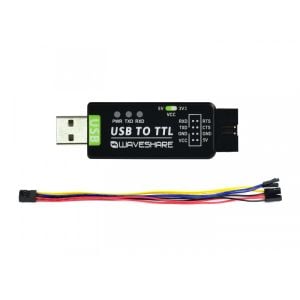

Endüstriyel USB TTL Dönüştürücü Orijinal FT232RL Uart Waveshare
317,70 TL + KDV
Kategori
Stok Kodu
C70
Fiyat
317,70 TL + KDV
KDV Dahil Fiyat
381,24 TL
Specifications
| Product category | Industrial USB TO TTL converter | Host port | USB |
|---|---|---|---|
| Data rate | 300bps ~ 3Mbps | Device Port | UART |
| USB port | Connector: USB-A Protection: resettable fuse, ESD protection |
||
| UART port | Connector: 8PIN fool-proof header Protection: IO protection diode |
||
| Indicator | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
||
Original Chip Onboard
Adopts original FT232RNL converter, providing better stability and compatibility, enabling industrial grade high performance communication between computer and TTL devices
Multiple systems support
Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android, WinCE...
Three LED Indicators
Easily checking the operating status, convenient for programming / debugging

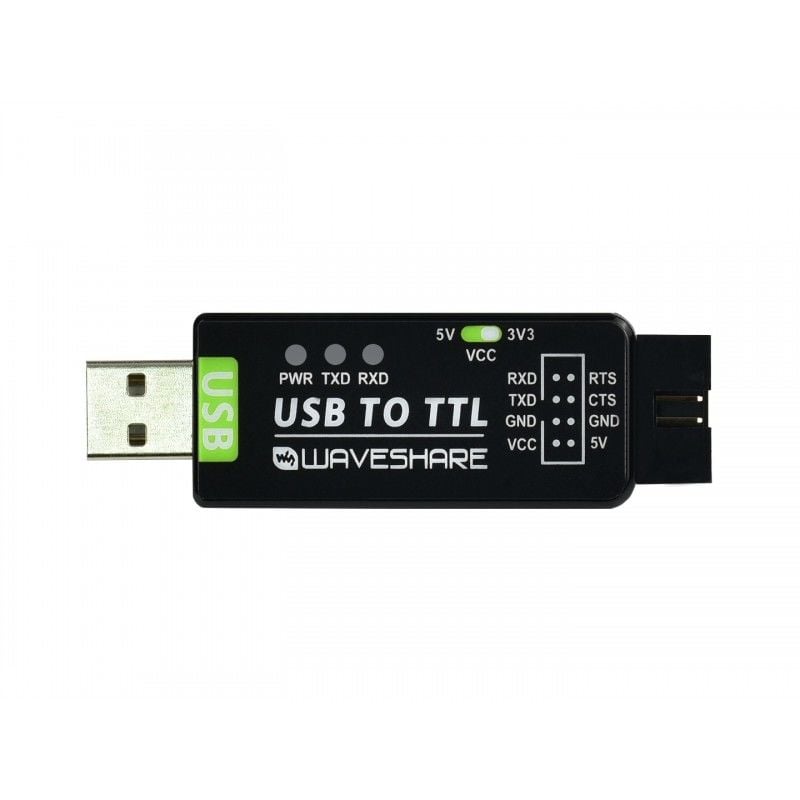

USB signal & Pinouts Definition
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) |
| RXD | Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) |
- USB cable is not included
- This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage
Outline dimensions
* measured manually, for reference only
Selection guide
| Partnumber | USB TO TTL | USB TO TTL (B) | USB TO TTL (C) | USB TO TTL (D) |
|---|---|---|---|---|
 |
 |
 |
 |
|
| PRODUCT CATEGORY | Industrial USB TO TTL converter | Industrial USB TO TTL serial cable | ||
| Chip | FT232 | CH343G | FT232 | |
| Data rate | 300bps ~ 3Mbps | 50bps ~ 6Mbps | 300bps ~ 3Mbps | |
| Hardware flow | Supported | Not supported | ||
| OS support | Win7/8/8.1/10/11, Mac, Linux, Android | |||
| USB port | Connector: USB-A Protection: resettable fuse, ESD protection |
|||
| UART port | Connector: 8PIN fool-proof header Protection: IO protection diode |
Connector: separated 6pin female header Protection: IO protection diode |
Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode |
|
| Indicators | PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back |
|||
