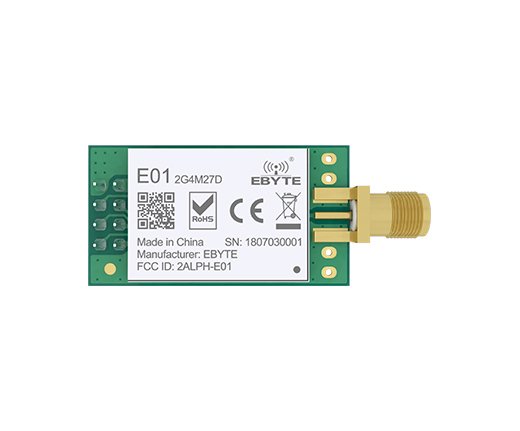

EBYTE NRF24L01P 2.4 - 2.525 GHZ E01-2G4M27D 5Km
285,60 TL + KDV
Kategori
Stok Kodu
T5
Fiyat
285,60 TL + KDV
KDV Dahil Fiyat
342,72 TL
| RF Parameter | Value |
Remark |
| Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
| Transmitting power | 27 dBm |
Max. Power (500mW) |
| Receiving sensitivity | -99 dBm |
Air data rate: 250kbps |
| Air data rate | 250k~2Mbps |
Default: 250kbps |
| Test distance | 5000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
| Hardware Parameter | Value | Remark |
|
Size |
18 * 33.4 mm |
Without SMA |
|
Antenna type |
SMA-K |
|
|
Communication interface |
SPI |
|
|
Package |
DIP |
|
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.5 | 3.3 | 5.5 | V | |
| Communication level | 2.0 | 3.3 | 3.6 | V | |
| Transmitting current |
480 | 490 | 500 | mA | 3.3V |
| Transmitting current |
380 | 390 | 400 | mA | 5.0V |
| Receiving current |
22 |
23 | 24 | mA | 3.3V |
| Receiving current |
21 |
22 | 23 | mA | 5.0V |
| Sleep current |
450 |
455 | 460 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
