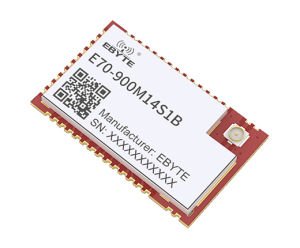

Ebyte E70-900M14S1B CC1312R
520,00 TL + KDV
Kategori
Stok Kodu
T79
Fiyat
520,00 TL + KDV
KDV Dahil Fiyat
624,00 TL
| Main parameter | Description |
Remark |
| Reference distance |
1500m |
Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps |
| Crystal Oscillator |
48MHz |
- |
| Modulation |
GFSK |
- |
| Package |
SMD |
- |
| Interface |
1.27mm |
- |
| IC |
CC1312R1F3RGZ |
- |
| FLASH |
352KB |
- |
| ROM |
256KB |
- |
| RAM |
8KB+80KB |
8KB cache SRAM (available as general-purpose RAM),80KB ultra-low leakage SRAM. |
| Core |
Arm Cortex-M4F processor |
- |
| Size |
26*16mm |
- |
| Antenna |
IPEX/stamp hole |
50 ohm impedance |
| Main parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
2.2 |
3.3 | 3.8 | V | ≥3.3 V ensures output power |
| Communication level |
- | 3.3 |
- | V |
For 5V TTL, it may be at risk of burning down |
| Operating temperature |
-40 |
- | +85 |
℃ |
Industrial grade |
| Operating frequency |
850 |
- | 930 |
MHz |
Support ISM band |
| TX current |
- | 24.9 |
- | mA |
Instant power consumption |
| RX current |
- | 5.8 |
- | mA |
- |
| Sleep current |
- | 2.0 |
- | μA |
Shut down by software |
| Max Tx power |
13.5 |
14 |
14.5 |
dBm |
- |
| Receiving sensitivity |
-120 |
-121 |
-122 |
dBm |
Air data rate is 5 kbps |
| Air data rate |
20k |
- | 1000k |
bps |
Controlled via user’s programming |
| Pin No. |
Item | Direction | Description |
| 1 | GND | Reference ground |
Ground |
| 2 | ANT | - | Antenna（50 ohm impedance） |
| 3 | X32K_Q1 |
Input/Output |
Connect with pin 4 to 32.768K quartz crystal |
| 4 | X32K_Q2 |
Input/Output |
Connect with pin 3 to 32.768K quartz crystal |
| 5 | DIO_1 |
Input/Output |
MCU GPIO |
| 6 | DIO_2 |
Input/Output |
MCU GPIO |
| 7 | DIO_3 |
Input/Output |
MCU GPIO |
| 8 | DIO_4 |
Input/Output |
MCU GPIO |
| 9 | DIO_5 |
Input/Output |
MCU GPIO |
| 10 | DIO_6 |
Input/Output |
MCU GPIO |
| 11 | DIO_7 |
Input/Output |
MCU GPIO |
| 12 | DIO_8 |
Input/Output |
MCU GPIO |
| 13 | DIO_9 |
Input/Output |
MCU GPIO |
| 14 | DIO_10 |
Input/Output |
MCU GPIO |
| 15 | DIO_11 |
Input/Output |
MCU GPIO |
| 16 | GND |
Reference ground |
Ground |
| 17 | DIO_12 |
Input/Output |
MCU GPIO |
| 18 | DIO_13 |
Input/Output |
MCU GPIO |
| 19 | DIO_14 |
Input/Output |
MCU GPIO |
| 20 | DIO_15 |
Input/Output |
MCU GPIO |
| 21 | TMSC |
Input |
JTAG TMSC |
| 22 | TCKC |
Input |
JTAG TCKC |
| 23 | DIO_16 |
Input/Output |
MCU GPIO |
| 24 | DIO_17 |
Input/Output |
MCU GPIO |
| 25 | DIO_18 |
Input/Output |
MCU GPIO |
| 26 | VCC |
- | Power supply：2.2～3.8V DC |
| 27 | GND |
Reference ground |
Ground |
| 28 | DIO_19 |
Input/Output |
MCU GPIO |
| 29 | DIO_20 |
Input/Output |
MCU GPIO |
| 30 | DIO_21 |
Input/Output |
MCU GPIO |
| 31 | DIO_22 |
Input/Output |
MCU GPIO |
| 32 | RESET |
Input |
Module reset |
| 33 | DIO_23 |
Input/Output |
MCU GPIO |
| 34 | DIO_24 |
Input/Output |
MCU GPIO |
| 35 | DIO_25 |
Input/Output |
MCU GPIO |
| 36 | DIO_26 |
Input/Output |
MCU GPIO |
| 37 | DIO_27 |
Input/Output |
MCU GPIO |
| 38 | DIO_28 |
Input/Output |
MCU GPIO |
| 39 | DIO_29 |
Input/Output |
MCU GPIO |
| 40 | DIO_30 |
Input/Output |
MCU GPIO |
| 41 | GND |
Reference ground |
Ground |
| 42 | GND |
Reference ground |
Ground |
