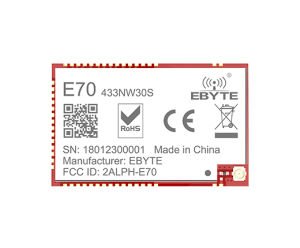

EBYTE E70 433NW30S 1W Lora Modül
840,00 TL + KDV
Kategori
Stok Kodu
T119
Fiyat
840,00 TL + KDV
KDV Dahil Fiyat
1.008,00 TL
| Pin No | Pin item | Pin direction | Pin application |
|---|---|---|---|
| 1 | GND | Ground | Ground electrode |
| 2 | GND | Ground | Ground electrode |
| 3 | GND | Ground | Ground electrode |
| 4 | NC | Reserved pin | Reserved, to be floated |
| 5 | NC | Reserved pin | Reserved, to be floated |
| 6 | NC | Reserved pin | Reserved, to be floated |
| 7 | NC | Reserved pin | Reserved, to be floated |
| 8 | NC | Reserved pin | Reserved, to be floated |
| 9 | NC | Reserved pin | Reserved, to be floated |
| 10 | NC | Reserved pin | Reserved, to be floated |
| 11 | NC | Reserved pin | Reserved, to be floated |
| 12 | NC | Reserved pin | Reserved, to be floated |
| 13 | NC | Reserved pin | Reserved, to be floated |
| 14 | NC | Reserved pin | Reserved, to be floated |
| 15 | NC | Reserved pin | Reserved, to be floated |
| 16 | LINK | Output | For indicating the current network connection status of the module, it can be configured as drain open circuit output or push-pull output. For details, please refer to the parameter setting, a 1K protection resistor shall be connected in series externally (it can be suspended). |
| 17 | GND | Ground | Ground electrode |
| 18 | NC | Reserved pin | Reserved, to be floated |
| 19 | NC | Reserved pin | Reserved, to be floated |
| 20 | NC | Reserved pin | Reserved, to be floated |
| 21 | NC | Reserved pin | Reserved, to be floated |
| 22 | TCKC | Input | JTAG TCKC |
| 23 | TMSC | Input | JTAG TMSC |
| 24 | RESET | Input | Module reset pin, low level effective |
| 25 | NC | Reserved pin | Reserved, to be floated |
| 26 | M0 | Input | M1M0 The four working modes of the module are determined by the joint combination. When in use, a 1K protection resistor shall be connected in series externally, and a 1M pull-up resistor shall be added (it shall not be suspended,otherwise, it can be grounded). |
| 27 | M1 | Input | M1M0 The four working modes of the module are determined by the joint combination. When in use, a 1K protection resistor shall be connected in series externally, and a 1M pull-up resistor shall be added (it shall not be suspended, |
| otherwise, it can be grounded). | |||
| 28 | VCC | - | Power supply ：2.6V ~ 5.5V DC |
| 29 | VCC | - | Power supply ：2.6V ~ 5.5V DC |
| 30 | GND | Ground | Ground electrode |
| 31 | GND | Ground | Ground electrode |
| 32 | ACK | Input | The user indicates the data transmission result of the module, which is pulled down before transmission and pulled up after success. It can be configured as drain open circuit output or push-pull output. When it is used, a 1K protection resistor should be connected externally in series (it can be suspended). |
| 33 | NC | Reserved pin | Reserved, to be floated |
| 34 | NC | Reserved pin | Reserved, to be floated |
| 35 | NC | Reserved pin | Reserved, to be floated |
| 36 | RXD | Input | TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. |
| 37 | TXD | Output | TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output |
| 38 | AUX | Output | To indicate module ’ s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (suspending is allowed). |
| 39 | NC | Reserved pin | Reserved, to be floated |
| 40 | NC | Reserved pin | Reserved, to be floated |
| 41 | NC | Reserved pin | Reserved, to be floated |
| 42 | TX_EN | Output | Internal single chip microcomputer control PA pin, high level effective,connected 45 pin |
| 43 | RX_EN | Output | Internal single chip microcomputer control LNA pin, high level effective,connected 44 pin |
| 44 | RX_EN | Input | Internal single chip microcomputer control LNA pin, high level effective,connected 43 pin |
| 45 | TX_EN | Input | Internal single chip microcomputer control PA pin, high level effective,connected 42 pin |
| 46 | GND | Ground | Ground electrode |
| 47 | GND | Ground | Ground electrode |
| 48 | ANT | - | Antenna 50 ohm impedance |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition | |
|---|---|---|---|---|---|---|
| Power supply | 3.3 | 5.0 | 5.2 | V | ≥3.3 V ensures output power | |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be at risk of burning down | |
| Transmitting current | - | 610 | - | mA | Instant power consumption | |
| Receiving current | - | 13 | - | mA | - | |
| Sleep current | - | 2 | - | μA | Software is shut down | |
| Operating temperature | -40 | - | +85 | ℃ | - | |
| Operating humidity | 10 | - | 90 | % | - | |
| Storage temperature | -40 | - | +125 | ℃ | - | |
| Hardware Parameter | Value | Remark |
|---|---|---|
| Size | 24 * 38.5 mm | - |
| Antenna type | IPEX / Stamp hole | 50 ohm impedance |
| Communication interface | UART | - |
| Package | SMD | - |
| Buffer | 512 byte | A single packet may not exceed 128 bytes |
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 433.3MHz ~ 434.5MHz | Support ISM band |
| Transmitting power | 30 dBm | - |
| Receiving sensitivity | -110 dBm | Air data rate is 5kbps |
| Air data rate | 5k~50kbps | Controlled via user’s programming |
| Test distance | 6500m | Test condition：clear and open area, antenna gain: 5dBi， |
