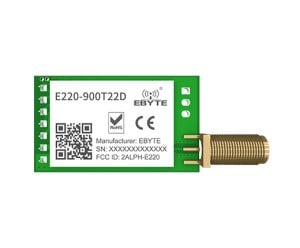

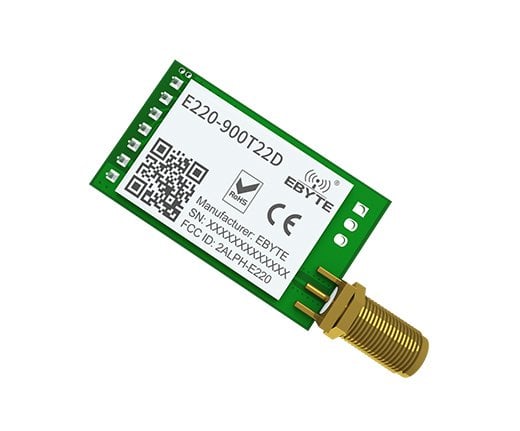

EBYTE E220-900T22D Lora Modül 5Km LLCC68
291,20 TL + KDV
Kategori
Stok Kodu
T3
Fiyat
291,20 TL + KDV
KDV Dahil Fiyat
349,44 TL
| Main Parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
3.0 | 5.0 | 5.5 | V | ≥5.0V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be burning down |
| TX current | - | 110 | - | mA | Instant power consumption @22dBm |
| RX current | - | 16.8 | - | mA | 5V Voltage |
| Sleep current | - | 5 | - | uA | Software shutdown |
| Operating Temperature | -40 | - |
+85 | ℃ | Industrial grade |
| Operating frequency |
850.125 | - | 930.125 | MHz | Support ISM band |
| Tx power | 21.5 | 22 | 22.5 | dBm | - |
| Receiving sensitivity | -146 | -147 | -148 | dBm | Air data rate 2.4kbps |
| Air data rate | 2.4k | 2.4k | 62.5k | bps | To control via user’s program |
| Main Parameter | Performance | Remark |
| Distance for reference |
5km | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate:2.4kbps |
| TX length | 200 Btye | Can be configured via command as 32/64/128/200 bytes per packet to transmit |
| Buffer | 400 Btye |
- |
| Modulation | LoRa | New generation LoRa modulation technology |
| Communication interface | UART Serial Port |
TTL Level |
| Package | DIP | - |
| Size | 21*36 mm | - |
| Antenna | SMA-K | 50 ohm impedance |
NameDirectionFunction
1M0
Input(weak pull-up)
Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded)
2M1Input(weak pull-up)Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded).
3RXDInputTTL UART inputs, connects to external TXD output pin.
4TXDOutputTTL UART outputs, connects to external RXD input pin.
5AUXOutputUsed to indicate the working status of the module; the user wakes up the external MCU, and outputs low level during power-on self-check initialization; (can be left floating)
6VCCInputVoltage range: 3.0～5.5V DC
7GNDInputGround
8Fixed hole-Fixed hole
9Fixed hole-
Fixed hole
10Fixed hole-
Fixed hole
