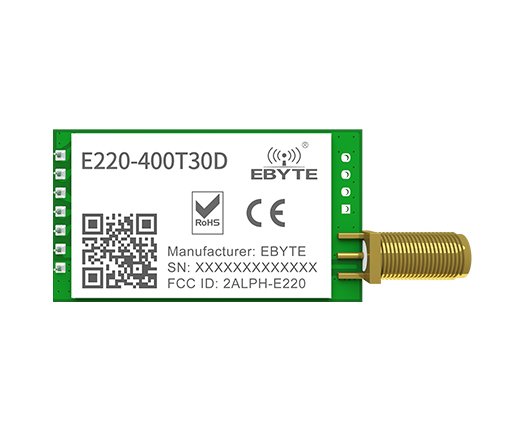

EBYTE E220-400T30D 410 - 493 Mhz 30Dbm Lora Modül 10Km
428,40 TL + KDV
Kategori
Stok Kodu
T10
Fiyat
428,40 TL + KDV
KDV Dahil Fiyat
514,08 TL
| Main Parameter | Performance | Remark |
| Operating frequency |
410.125~493.125MHz | Support ISM band |
| Tx power | 30dBm | - |
| Receiving sensitivity | -147dbm |
Air data rate 2.4kbps |
| Air data rate | 2.4k~62.5kbps | To control via user’s program |
| Distance for reference | 10Km |
Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate:2.4kbps |
| Main Parameter | Performance | Remark |
| Size |
24*43mm | - |
| Antenna | SMA-K |
50 ohm impedance |
| Communication interface | UART |
TTL Level |
| Package | DIP |
- |
| Main Parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
3.0 | 5.0 | 5.5 | V | ≥5.0V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be burning down |
| TX current | - | 620 | - | mA | Instant power consumption @30dBm |
| RX current | - | 17.2 | - | mA | 5V Voltage |
| Sleep current | - | 5 | - | uA | Sleep mode |
| Operating temperature | -40 | - |
+85 | ℃ | Industrial design |
