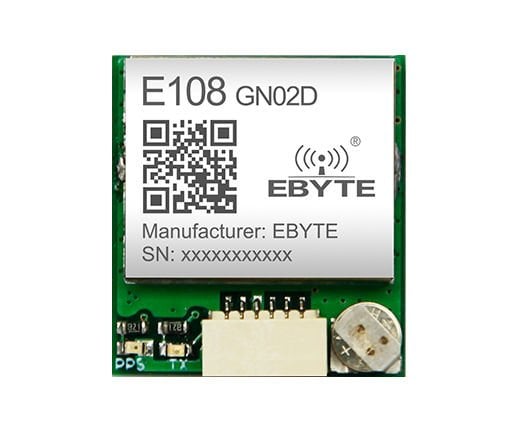

EBYTE E108-GN02D
360,00 TL + KDV
Kategori
Stok Kodu
T210
Fiyat
360,00 TL + KDV
KDV Dahil Fiyat
432,00 TL
| Pin No. | Name | Description |
|---|---|---|
| 1 | CE | Power enable terminal, can be pulled down to enter low power consumption mode (default is high) |
| 2 | 1PPS | 1PPS output, users can set frequency, duration, etc. through commands |
| 3 | GND | Module power ground wire |
| 4 | TXD | UART output (2.8V level) |
| 5 | RXD | UART input (2.8V level) |
| 6 | VCC | Module power supply (3V—5.5V) |
| Category | Description |
| letter of agreement |
Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz |
| Supported positioning system | BDS/GPS/GLONASS |
| Support peripheral interface | UART（TXD/RXD） |
| Low power consumption | Support |
| Periodic low power consumption | Support |
| Direct low power consumption | Support |
| Parameter setting software | Support |
| Certification | Pending |
| Module size | 22*20*5.8mm(L*W*H) |
| interface | 6P wiring seat, spacing 1.0mm |
| power supply | VCC（3-5.5V） |
| Serial port | Description |
| Communication level | 2.8V—3.3V（2.8V） |
| Baud rate (bps) | 9600~921600，default 9600 |
| Data bit | 8bit |
| Stop bit | 1 |
