Ebyte E01C-ML01S Rf Modül
E01C-ML01S Si24R1 2.4GHz 2Mbps 7dBm 300m 16MHz crystal oscillator PCB antenna 2.4G SMD SPI RF Module
|
Main Parameters |
Value |
Remarks |
|
|
Min. |
Max |
||
|
Power supply（V） |
0 |
3.6 |
Voltage over 3.6V will causepermanent damage to module |
|
Blocking power（dBm） |
- |
10 |
Chances of burn is slim when modulesare used in short distance |
|
Operating temperature（℃） |
-40 |
+85 |
- |
Operating parameter
|
Main Parameters |
Value |
Remarks |
||
|
Min. |
Typical |
Max |
||
|
Operating voltage（V） |
2.0 |
3.3 |
3.6 |
≥3.3V ensures output power |
|
Communication level（V） |
- |
3.3 |
- |
For 5V TTL, it may be at risk ofburning down |
|
Operating temperature（℃） |
-40 |
- |
85 |
Industrial design |
|
Operating frequency（MHz） |
2.4 |
- |
2.525 |
Support ISM band |
|
TX Current(mA) |
- |
12 |
- |
0dBm |
|
RX current（mA） |
- |
15 |
- |
- |
|
Sleep current（μA） |
- |
0.7 |
- |
Software is shut down |
|
Max Tx power（dBm） |
- |
7 |
- |
- |
|
Receiving sensitivity（dBm） |
- |
-83 |
- |
Air data rate is 250kbps |
|
Air data rate（bps） |
250k |
- |
2M |
Controlled via user’s programming |
|
Main parameter |
Description |
Remarks |
|

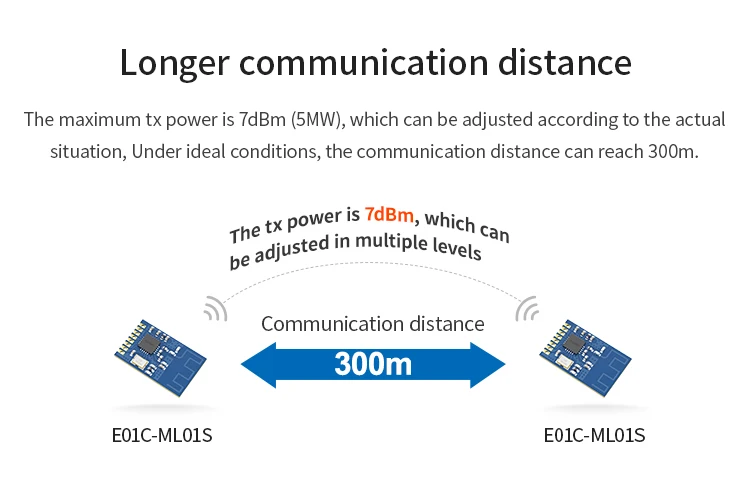

Distance for reference |
300m |
Test condition：clear and open area, antenna gain: 5dBi，antennaheight: 2.5m，air data rate: 250kbps |
|
FIFO |
32Byte |
Max length transmitted each time |
|
Crystal frequency |
16MHz |
- |
|
Modulation |
GFSK |
- |
|
Package |
SMD |
- |
|
Connector |
1.27mm |
- |
|
Communication interface |
SPI |
0-10Mbps |
|
Size |
12 * 19mm |
Without SMA |
|
Antenna |
PCB antenna |
50ohm impedance |
