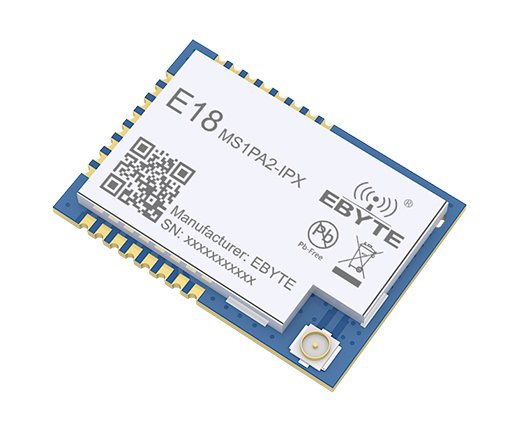

EBYTE CC2530 2.4 - 2.48 GHZ E18-MS1PA2-IPX 1.2Km
280,80 TL + KDV
Kategori
Stok Kodu
T13
Fiyat
280,80 TL + KDV
KDV Dahil Fiyat
336,96 TL
| RF Parameters | Value |
Remark |
| Operating frequency |
2400~2480 MHz | ISM band |
| Transmitting power | 19.6~20.5 dBm | - |
| Receiving sensitivity | -99~-97 dBm |
Air data rate is 250 kbps |
| Protocol | ZigBee | - |
| Reference distance | 1200m | Test condition: clear and open area, antennna gain: 5dBi,antenna height: 2.5m, aur data rate: 250kbps |
| Hardware Parameter | Value |
Remark |
| IC |
CC2530F256RHAT/QFN40 | Built-in PA+LNA |
| FLASH |
256 KB | - |
| RAM |
8 KB | - |
| Core |
8051 | - |
| Size |
16.0 * 22.5 mm | - |
| Interface | 1.27mm | - |
| Package | SMD |
- |
| Communication interface | I/O | All IO ports lead out |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Operating voltage |
2.0 | 3.3 | 3.6 | V | ≥3.3 V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be at risk of burning down |
| TX current | - | 100 | - | mA | Instant power consumption |
| RX current | - | 35 | - | mA |
|
| Sleep current | - | 2 | - | μA | Shut down by software |
| Operating temperature |
-40 | - |
+85 | ℃ | Industrial grade |
| Pin No. |
Pin item | Pindirection | Application |
| 1 | GND |
Input |
Ground, connecting to power supply reference ground |
| 2 | VCC | Input |
Power supply, must be 2.0-3.6V |
| 3 | P2.2 |
Input /Output |
MCU GPIO |
| 4 | P2.1 | Input /Output |
MCU GPIO |
| 5 | P2.0 | Input /Output |
MCU GPIO |
| 6 | P1.7 | Input /Output |
MCU GPIO |
| 7 | P1.6 | Input /Output |
MCU GPIO |
| 8 | NC | - |
N.C. |
| 9 | NC | - |
N.C. |
| 10 | P1.5 | Input /Output |
MCU GPIO |
| 11 | P1.4 |
Input /Output |
MCU GPIO |
| 12 | P1.3 |
Input /Output |
MCU GPIO |
| 13 | P1.2 | Input /Output |
MCU GPIO |
| 14 | P1.1 | Output |
MCU GPIO，PA transmission control pin |
| 15 | P1.0 | Output |
MCU GPIO，PA receiving control pin |
| 16 | P0.7 | Input /Output |
MCU GPIO |
| 17 | P0.6 | Input /Output |
MCU GPIO |
| 18 | P0.5 | Input /Output |
MCU GPIO |
| 19 | P0.4 | Input /Output |
MCU GPIO |
| 20 | P0.3 | Input /Output |
MCU GPIO |
| 21 | P0.2 | Input /Output |
MCU GPIO |
| 22 | P0.1 |
Input /Output |
MCU GPIO |
| 23 | P0.0 | Input /Output |
MCU GPIO |
| 24 | RESET | Input |
Reset port |
