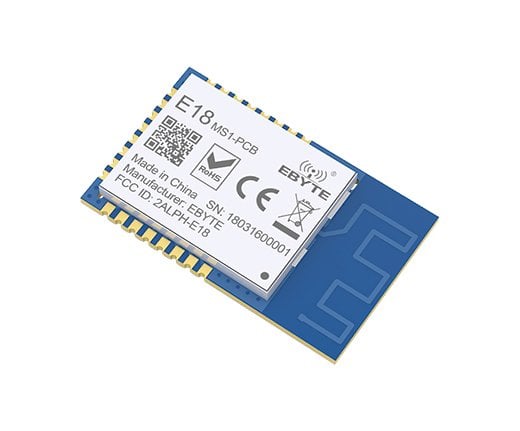

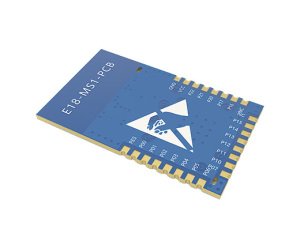

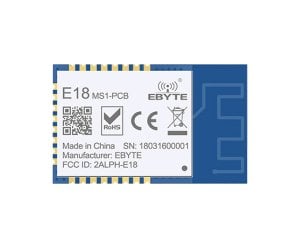

EBYTE CC2530 2.4 - 2.48 GHZ E18-MS1-PCB 200 metre
| RF Parameter | Value |
Remark |
| Working frequency |
2400~2480 MHz |
Default: 2.4GHz (32MHz oscillator) |
| Transmitting power | 4 dBm |
About 2.5mW |
| Receiving sensitivity |
-96.4 dBm |
Air data rate: 250kbps |
| Communication protocal |
ZigBee |
- |
| Test distance | 200m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
| Hardware Parameter | Value |
Remark |
|
IC |
CC2530F256RHAT/QFN40 |
- |
|
FLASH |
256 KB |
- |
|
RAM |
8 KB |
- |
|
Core |
Industry-standard enhanced 8051 MCU |
- |
|
Size |
14.1 * 23.0 mm |
- |
|
Antenna type |
PCB |
- |
|
Communication interface |
SoC |
- |
|
Package |
SMD |
- |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.0 | 3.3 | 3.6 | V | |
| Communication level | 2.0 | 3.3 | 3.6 | V | |
| Transmitting current |
26 | 28 | 31 | mA | 4dBm（2.5mW） |
| Receiving current |
25 |
27 | 30 | mA |
|
| Sleep current |
0.6 |
1.2 | 1.8 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
| Pin No |
Pin item | Pin direction | Pin application |
| 1 | GND |
Input |
Ground |
| 2 | VCC | Input |
Power supply 2.0V ~ 3.6V DC |
| 3 | P2.2 | Input/output |
MCU GPIO |
| 4 | P2.1 | Input/output |
MCU GPIO |
| 5 | P2.0 | Input/output |
MCU GPIO |
| 6 | P1.7 | Input/output |
MCU GPIO |
| 7 | P1.6 | Input/output |
MCU GPIO |
| 8 | NC | - |
Empty |
| 9 | NC | - |
Empty |
| 10 | P1.5 | Input/output |
MCU GPIO |
| 11 | P1.4 | Input/output |
MCU GPIO |
| 12 | P1.3 | Input/output |
MCU GPIO |
| 13 | P1.2 | Input/output |
MCU GPIO |
| 14 | P1.1 | output |
MCU GPIO |
| 15 | P1.0 | output |
MCU GPIO |
| 16 | P0.7 | output |
MCU GPIO |
| 17 | P0.6 | Input/output |
MCU GPIO |
| 18 | P0.5 | Input/output |
MCU GPIO |
| 19 | P0.4 | Input/output |
MCU GPIO |
| 20 | P0.3 | Input/output |
MCU GPIO |
| 21 | P0.2 | Input/output |
MCU GPIO |
| 22 | P0.1 | Input/output |
MCU GPIO |
| 23 | P0.0 | Input/output |
MCU GPIO |
| 24 | RESET | Input |
Reset |
