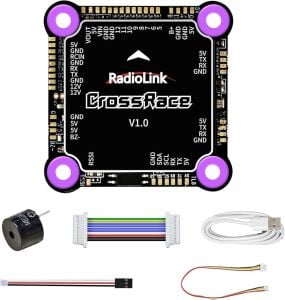

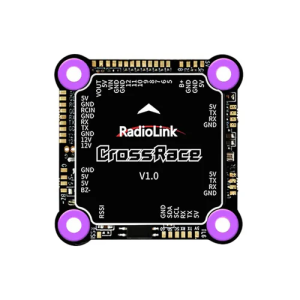

Orjinal Radiolink CrossRace Apm and Betaflight Otonom ve Profesyonel Manuel Uçuş Kontrol kartı

Orjinal Radiolink CrossRace Apm and Betaflight Otonom ve Profesyonel Manuel Uçuş Kontrol kartı

Orjinal Radiolink CrossRace Apm and Betaflight Otonom ve Profesyonel Manuel Uçuş Kontrol kartı

3.266,00 TL + KDV

Kategori

Drone ve Multikopter Uçuş Kontrol Kartları

Stok Kodu

D68

Fiyat

3.266,00 TL + KDV

KDV Dahil Fiyat

3.919,20 TL

SEPETE EKLE

HEMEN AL

Fiyat Alarmı

It combines the high-precision PosHold Flight Mode of the autonomous flight controller APM(ArduPilot)

and the professional manual control performance of Betaflight.
Novices can switch to the PosHold Mode to save the aircraft at any time when practicing manual operation,

and accurate automatic return to home allows pilots to enjoy the fun of outdoor flying and be worry-free about losing the aircraft.

Get Source Code from GitHub for Redevelopment: https://github.com/radiolinkW/ArduPilot-RL

The tutorial manual about how to set the flight waypoints:

https://www.radiolink.com/newsinfo/475989.html

GeoFence

Worry-free from Long-range Voyage

Geofence settings according to the drone management regulations promulgated by the country.

It can fly within the prescribed flight airspace and fly law-abidingly.

4-in-1 ESC and ESC Telemetry Supported

20 years of industry accumulation, 10 years of research in the field of the flight control system, continuous independent research

and development capabilities, breaking industry constraints, establishing a safe research and development system,

not restricted by chips, and no need to worry about supply interruptions caused by chip production stoppages.

5V&12V Dual BEC Built-in

All Interfaces can be Plug-and-play

Redevelopment Supported

Comprehensive Technical Support

5V&12V Dual BEC Built-in

Support Current Various Mainstream Throttle Signals

Freestyle Master

Support DShot, OneShot, and PWM signals.

Quality Assurance

Unique Automation Software Testing System

The same Automation Software Testing System as PIXHAWK and Mini Pix helps realize test automation

from the sensor to connection ports and interface. The test efficiency and quality assurance are

far superior to traditional manual tests, ensuring the quality of every function of every CrossRace.

Vibration Damping by Software

As stable as Mini Pix

Vibration Damping by Software same as the Mini Pix, it can effectively filter out high-frequency vibrations,

always ensure the accuracy of sensor data, achieve better Altitude Hold effect, and make the flight more stable.

Breaking the tradition, all the planes with fixed-wings, drones (including micro racing drones such as 210, 220, and 250),

and even Heavy Lift Drone do not need to add a mounting frame.

CrossRace work for the 3KG Payload Heavy Lift Drone

OSD Module Integrated

Real-time Gesture Visualization Display

CrossRace can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates* of the aircraft at any time during the first-view (FPV) flight of aircraft such as racing drones and long-distance fixed-wing aircraft. Achieve a more comfortable flying experience.

* Real-time display of flight information such as flight mode, distance, GPS stars, longitude and latitude,

vertical speed, magnetic deviation, current time, battery voltage, current, wind speed, return route, exact route,

vibration status, direction, etc. Rich parameters display and thoughtful setup make the safer flight.

Cost-effective Solution

Flight controller CrossRace works with the 12 channels remote control system AT9S Pro, the 12 channels micro receiver R12DSM,

the mini GPS TS100, the ultrasonic sensor SU04, the DJI/CADDX high-definition digital image transmission, and HD Goggles,

almost all the parts of the RC drone you need we can offer. Super adaptability of cost-effective solutions in various application fields

such as cutting-edge UAV solutions, UAV education, agriculture, flight formation, educational companies,

security and rescue, smart epidemic prevention, public safety, and cinematography solutions.

12-Channel Output

TELEM2 Output

(Connect data transmission/SU04 ultrasonic obstacle avoidance module/

serial receiver, etc.)

TELEM1 Output

RSSI Port

BUZZER Port

TELEM3 Output Port

(Connect GPS)

ESC Connect Port + TELEM5 Output Port

(Connect four-in-one ESC) + (ESC Telemetry)

RC IN Port

(Connect Receiver)

Analog Video Transmission

Receiver or Other

to connect digital graphics or other

TELEM4 Output Port

(Connect Digital Image Transmission: DJI O3/CADDX Avatar can be plug-and-play)

USB port (type-c)

(for firmware upgrade/parameter tuning)

Definition of Each Port of the Soldering Plate

Definition of Each Port of the Socket

Power Supply(5V)

HD Digital

Image Transmission System

Receiver

Flight Controller

(CrossRace)

Four-in-one ESC

GPS

12-channel Transmitter

Propeller

Battery

Motor

Power Supply(5V)

Power Supply(12V)

Power Supply(5V)

TELEM3 Output Port

(Connect GPS)

Button for Bootloader

For Analog Video Transmission connection: VOUT connects to the Video port of image transmission, and VIN connects to the Video port of the Camera, then powers them separately according to the voltage of the camera and image transmission, 5V and 12V power supplies can be selected.

small size, big

can also be used for speed sports, super-running aerial photography and speed loads.

volume only30.5*30.5mm, cancel unnecessary interfaces and reduce installationmachine;

belt connecting line is 39g, which reduces the weight of the whole machine. There is no pressure on the installation of small-sized high-speed aerial photography machines such as stunt skiing and super sports car promotional films.

The unique high dynamic algorithm flight controller, which combines Kalman filtering technology and inertial navigation algorithm,

is widely used in high-speed autonomous drones, such as the documentary “Amazing Drone Race China” shot by Tencent in 2018,

the movie “WU KONG” shot by mobile phone Huawei P30 Pro in 2019, and the XPENG T1 prototype Flying car.

DJI/CADDX HD Digital Video Transmission Plug-and-play

More Interfaces can be Expanded as You Need

It supports DJI O3 and CADDX Walksnail Avatar HD PRO KIT high-definition digital image transmission plug-and-play.

By combining socket interfaces and soldering pads, more interfaces can be expanded without

changing the size of the flight controller to meet the needs of more DIY functions.

Four-in-one ESC

Flight Controller

CrossRace

GPS

HD Digital

Image Transmission System

Receiver

Combine APM(ArduPilot) and Betaflight
Fusion of Autonomous Flight and Professional Manual Mode

It combines the high-precision PosHold Flight Mode of the autonomous flight controller APM(ArduPilot)

and the professional manual control performance of Betaflight.
Novices can switch to the PosHold Mode to save the aircraft at any time when practicing manual operation,

and accurate automatic return to home allows pilots to enjoy the fun of outdoor flying and be worry-free about losing the aircraft.

Get Source Code from GitHub for Redevelopment: https://github.com/radiolinkW/ArduPilot-RL

The tutorial manual about how to set the flight waypoints:

https://www.radiolink.com/newsinfo/475989.html

GeoFence

Worry-free from Long-range Voyage

Geofence settings according to the drone management regulations promulgated by the country.

It can fly within the prescribed flight airspace and fly law-abidingly.

4-in-1 ESC and ESC Telemetry Supported

20 years of industry accumulation, 10 years of research in the field of the flight control system, continuous independent research

and development capabilities, breaking industry constraints, establishing a safe research and development system,

not restricted by chips, and no need to worry about supply interruptions caused by chip production stoppages.

5V&12V Dual BEC Built-in

All Interfaces can be Plug-and-play

Redevelopment Supported

Comprehensive Technical Support
