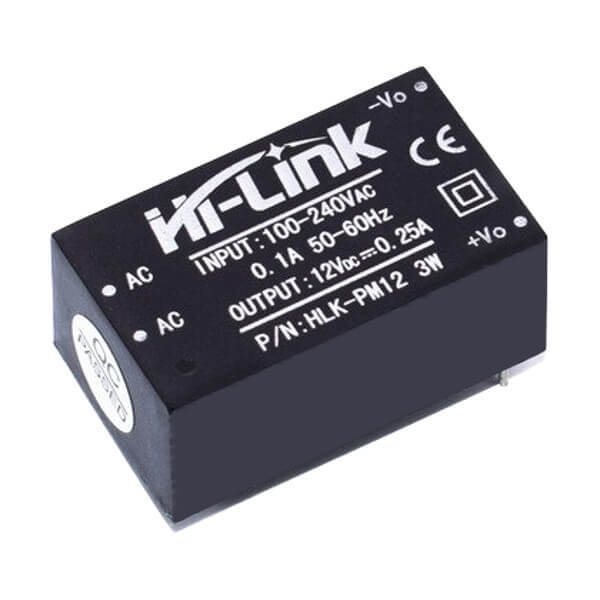

Hi-Link AC 220V - DC 12V Dönüştürücü 3W Güç Kaynağı HLK-PM12
140,00 TL + KDV
Kategori
Stok Kodu
R232
Fiyat
140,00 TL + KDV
KDV Dahil Fiyat
168,00 TL
Küçük boyutlu 220VAC - 12VDC güç kaynağı
Yer sıkıntısı yaşadığınız projelerinizde kullanabileceğiniz mini boy AC şebeke gerilimini 12VDC'ye dönüştüren güç kaynağı modülüdür. 100-240V AC / 50-60Hz şebeke gerilimi ile kullanılabilmektedir. 12VDC/3W çıkışa sahiptir.
HLK-PM01 Çalışma Koşulları:
Çalışma sıcaklığı: - 20-60 °C
Saklama sıcaklığı: + 80-40 °C
Bağıl nem: 5-95%
Soğutma: Pasif
Atmosferik basınç: 80-106Kpa
İrtifa :2000M yada daha düşük
Titreşim: 10 ~ 500 Hz, 2 g10dk / 1 cycle, 60 dk
Environmental conditions
Electrical characteristics
Safety Characteristics
Products designed to meet UL, CE safety certification requirements.
*Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
*Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90 ℃;
Shell maximum surface temperature does not exceed 60 ℃
Logo, packaging, transportation, storage
* Product logo
In place of products labeled with signs, its content in line with national standards, industry standards.
* Packaging logo
Products marked with the manufacturer's name, address, zip code, product type, manufactured year, month, day on the box ;
Marked "up", "moisture" "Handle with care" and other transportation signs, all signs are in line with the provisions of GB 191.
* Packaging
Products are separated using special plastic box packaging, with anti-vibration function, and in accordance with the provisions of GB 3873.
* Transport
Packaged products can be shipped by any transportation service, there should be awnings in transport and no excessive vibration, impact, etc.
* Storage
Products should be stored in compliance with GB 3873.
| Items | Technical Parameters | Units | Notes |
| Working temperature | -25—+60 | ℃ | |
| Storage temperature | -40—+80 | ℃ | |
| Relative humidity | 5—95 | % | |
| Thermal methods | Natural cooling | ||
| Atmospheric pressure | 80—106 | Kpa | |
| Altitude | ≤2000 | m | |
| Vibration | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes | Meets requirements for secondary road transportation |
Electrical characteristics
| Items | Technical Parameters | Units | Notes |
| Rated input voltage | 100-240 | Vac | |
| Input voltage range | 85-265 | Vac | or 70-350Vdc |
| The maximum input current |
≤0.1 | A | |
| Input inrush current | ≤10 | A | |
| Input low start | ≤50 | mS | |
| Long-term reliability | MTBF≥100, 000 | h | |
| External fuse recommended |
1A / 250Vac or 10Ω wire wound resistance | Slow blow |
Safety Characteristics
Products designed to meet UL, CE safety certification requirements.
*Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
*Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90 ℃;
Shell maximum surface temperature does not exceed 60 ℃
Logo, packaging, transportation, storage
* Product logo
In place of products labeled with signs, its content in line with national standards, industry standards.
* Packaging logo
Products marked with the manufacturer's name, address, zip code, product type, manufactured year, month, day on the box ;
Marked "up", "moisture" "Handle with care" and other transportation signs, all signs are in line with the provisions of GB 191.
* Packaging
Products are separated using special plastic box packaging, with anti-vibration function, and in accordance with the provisions of GB 3873.
* Transport
Packaged products can be shipped by any transportation service, there should be awnings in transport and no excessive vibration, impact, etc.
* Storage
Products should be stored in compliance with GB 3873.
