74HC266 Entegre
13,28 TL + KDV
Kategori
Stok Kodu
KP219
Fiyat
13,28 TL + KDV
KDV Dahil Fiyat
15,94 TL

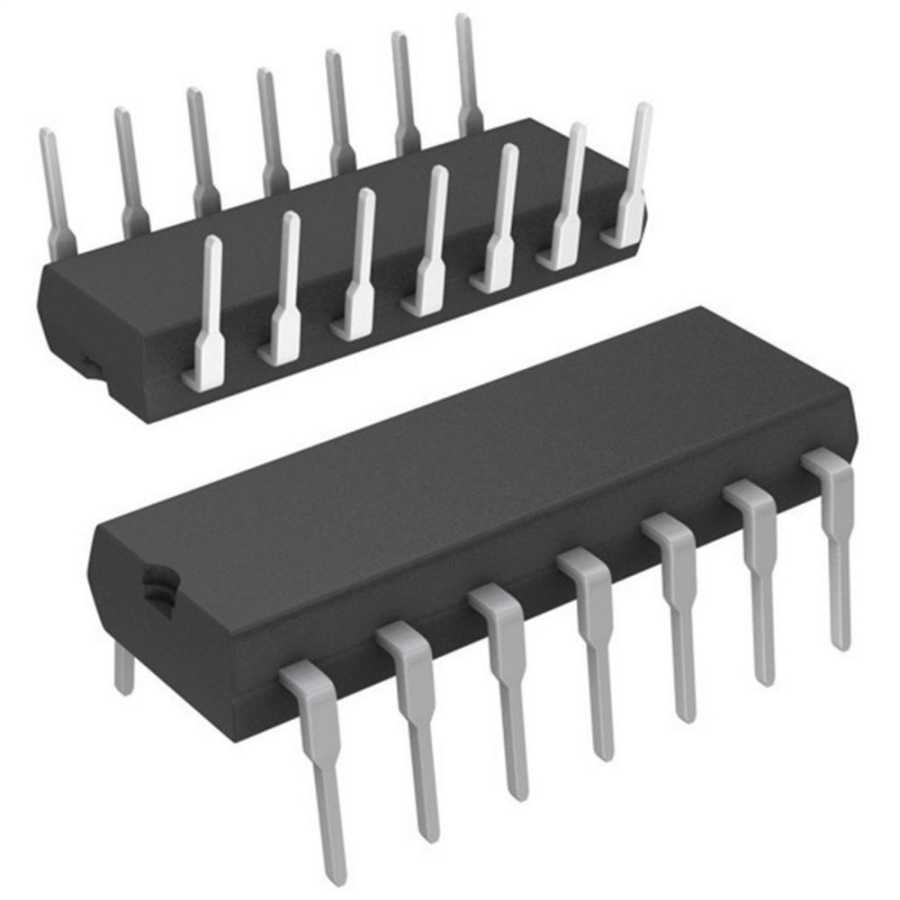

74HC266 Dip Entegre Xnor Kapısı ürünü ile ilgili teknik açıklama aşağıdaki gibidir:
| Status | Discontinued |
| Logic IC Type | XNOR GATE |
| Sub Category | Gates |
| Family | HC/UH |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50 pF |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Output Characteristics | OPEN-DRAIN |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 2/6 |
| Propagation Delay (tpd) | 30 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Max (Vsup) | 6 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 19.21 mm |
| Width | 7.62 mm |
