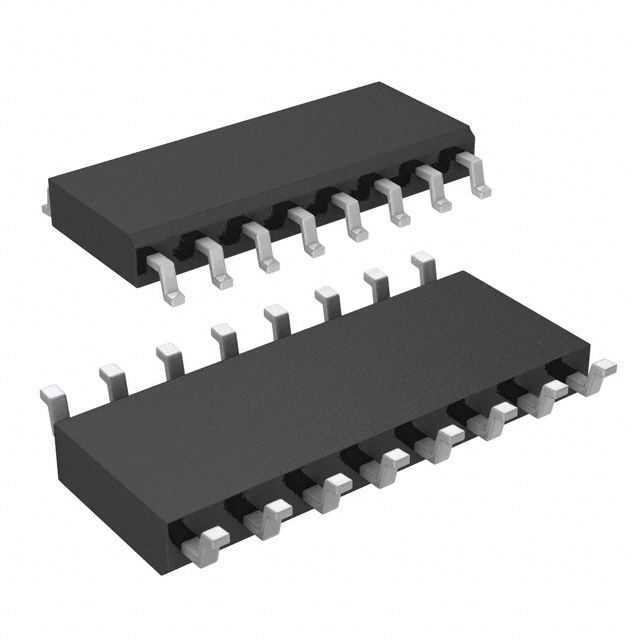

74HC257 SMD Entegre
8,42 TL + KDV
Kategori
Stok Kodu
P18
Fiyat
8,42 TL + KDV
KDV Dahil Fiyat
10,10 TL
74HC257 SMD Entegre ürünü ile ilgili teknik açıklama aşağıdaki gibidir:
| Status | Discontinued |
| Logic IC Type | MULTIPLEXER |
| Sub Category | Multiplexer/Demultiplexers |
| Family | HC/UH |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e4 |
| Load Capacitance (CL) | 50 pF |
| Max I(ol) | 0.0060 Amp |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Power Supplies (V) | 2/6 |
| Prop. Delay@Nom-Sup | 33 ns |
| Propagation Delay (tpd) | 165 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.7 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Max (Vsup) | 6 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 21.6 mm |
| Width | 7.62 mm |
